Product Overview
EX3
Boundary Element Method & Stress Analysis
Perform faster analysis of underground excavations using Boundary Element Method, which only requires meshing of the surface, resulting in simpler and more efficient discretization. Perfect for modelling infinite and simi-infinite elastic domains.
Full Scale Mine Analysis

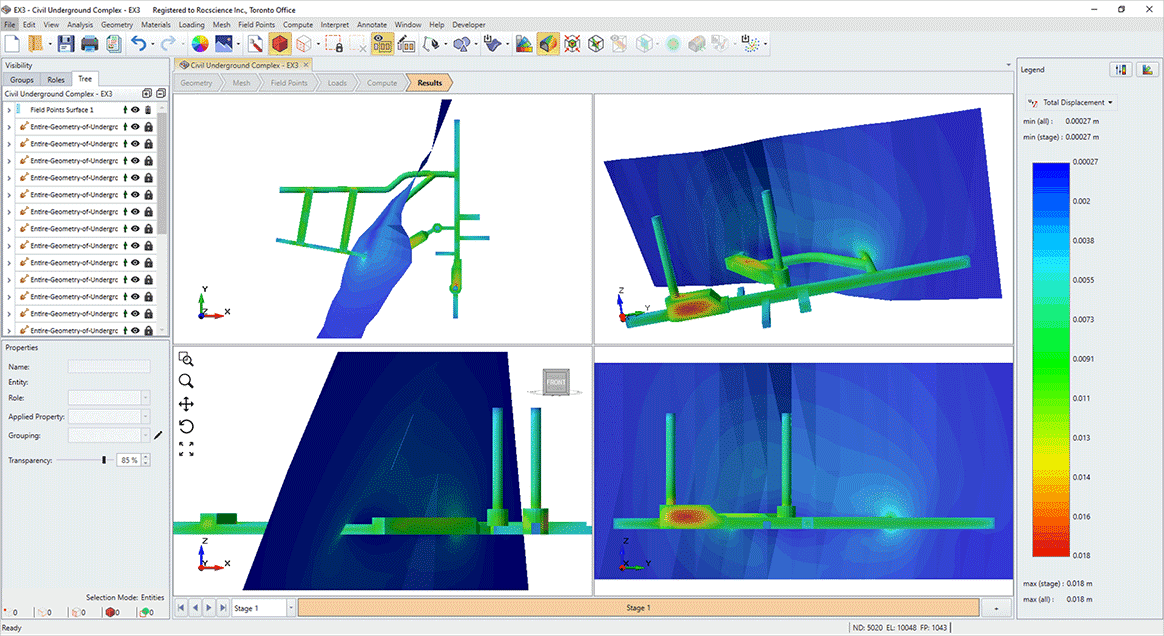

Define and model large-scale mines with ease using advanced features in EX3. Import geometry, design excavations and backfill in different stages and visualize your results on the surface of the mine and pre-defined field points.
3D Geometry

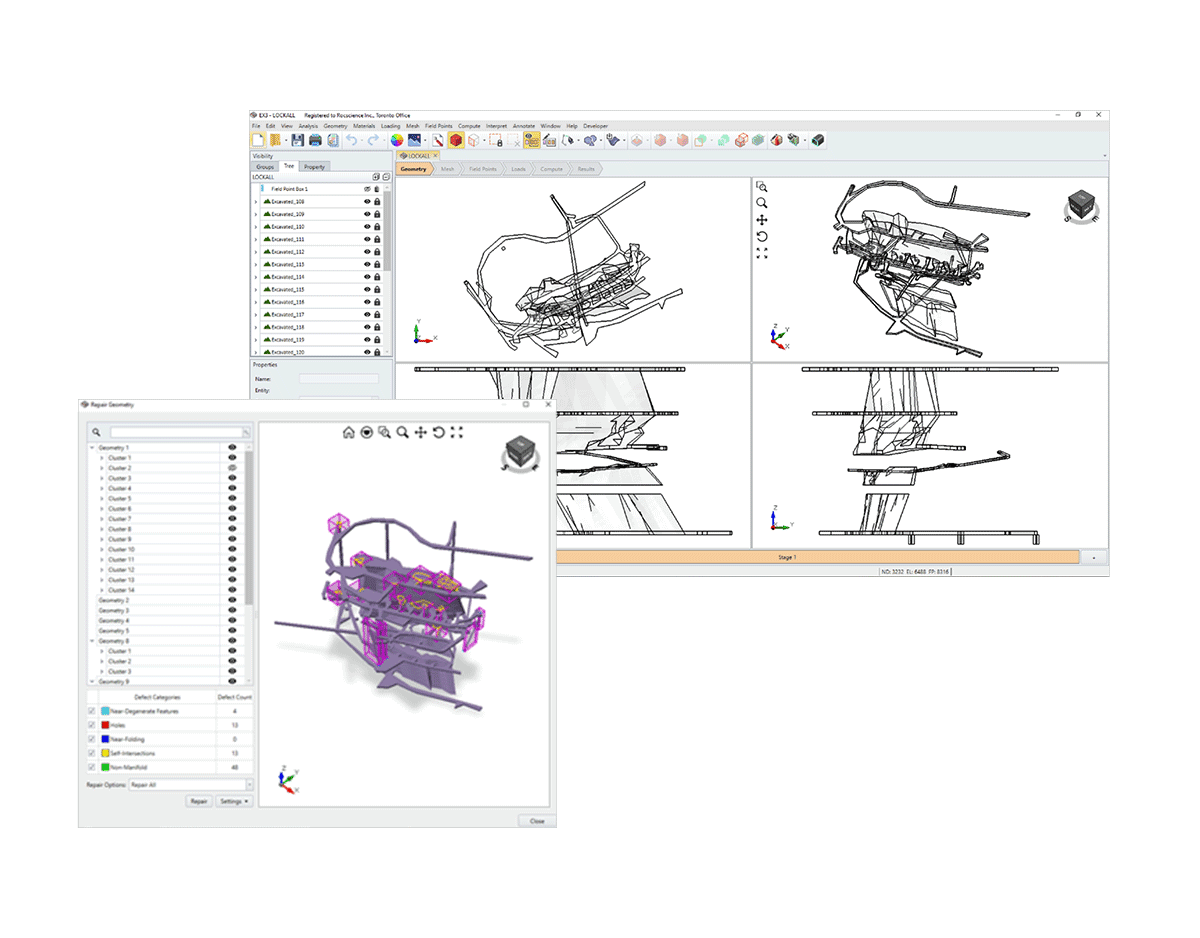

Import a variety of 3D geometries including *.obj, *.stl, *.dxf, *.dwg, file types then analyze your models to find discrepancies and repair the geometry in minutes.
Specifications
Compute :
Parallel 64-bit processing
Fully optimized
Direct or iterative solver
Data Interpretation :
2D/3D view
Plot contours on horizontal, vertical, or arbitrary planes
Plot contours on boundaries

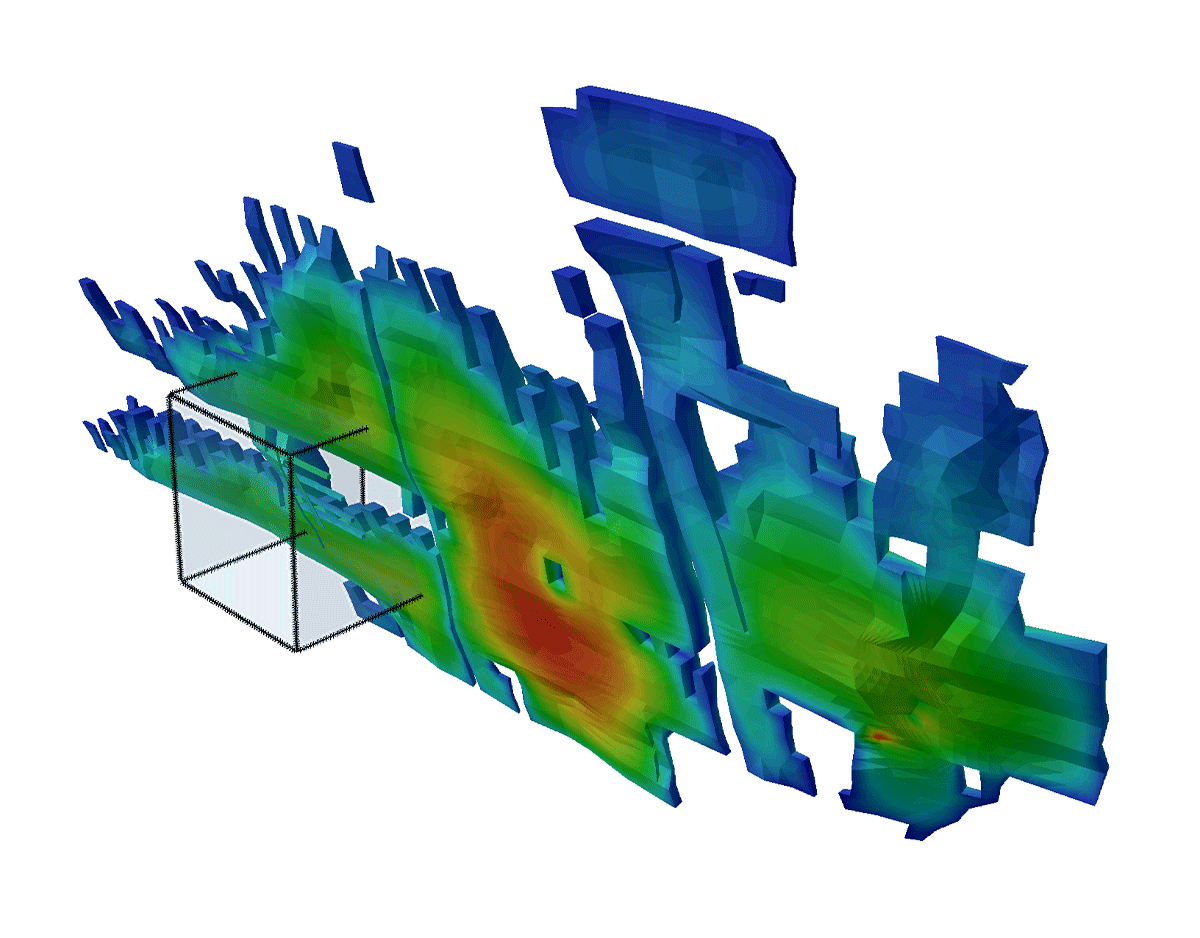

View stress, displacement contours
Contour user-defined data
Deformation vectors
Display deformations to user-defined scale
Query and graph material data
Show values directly on model
Highlight yielded joint elements
Display iso-surfaces
Data tips for any object
Annotation and dimensioning tool kit
Export to Excel
Export image files
Export contour surfaces
Import IDS Live GeoRadar data
Far-Field Stress :
Constant stress field
Gravity stress field
Stress field per material
Loads :
Distributed load
Staged loading
Materials :
Multiple materials
Mohr-Coulomb, Hoek-Brown, Generalized Hoek-Brown material models
Meshing :

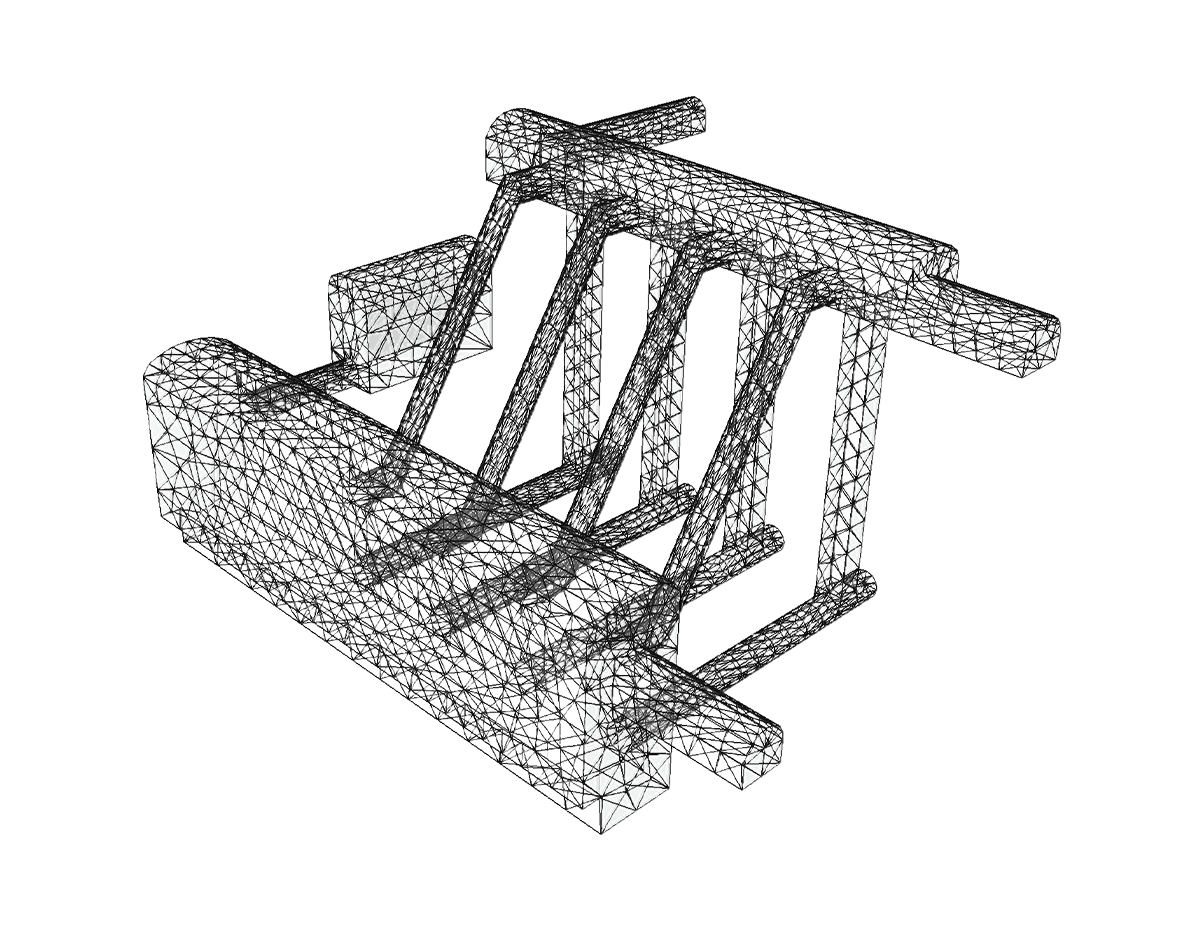

3-noded surface elements
One-click mesh generation
Graded meshing
Uniform meshing
Check/Define mesh quality
Define mesh refinement region
Modeling :
Create 3D models with CAD tools
Multiple excavations
Interactive geometry entry
Vertex/Object snapping
One-click material assignment
Import 3D .dxf, .dwg, .obj, .stl, .step, .iges, .tin, .asc, .xyz files
Surface Triangulation and Geometry
Repair Tools :
Import from RS3
Right-click editing shortcuts
Interactive sidebar
Interactive staging timeline
Tunnel profile tool
