Product Overview
RocFall2
2D Statistical Analysis

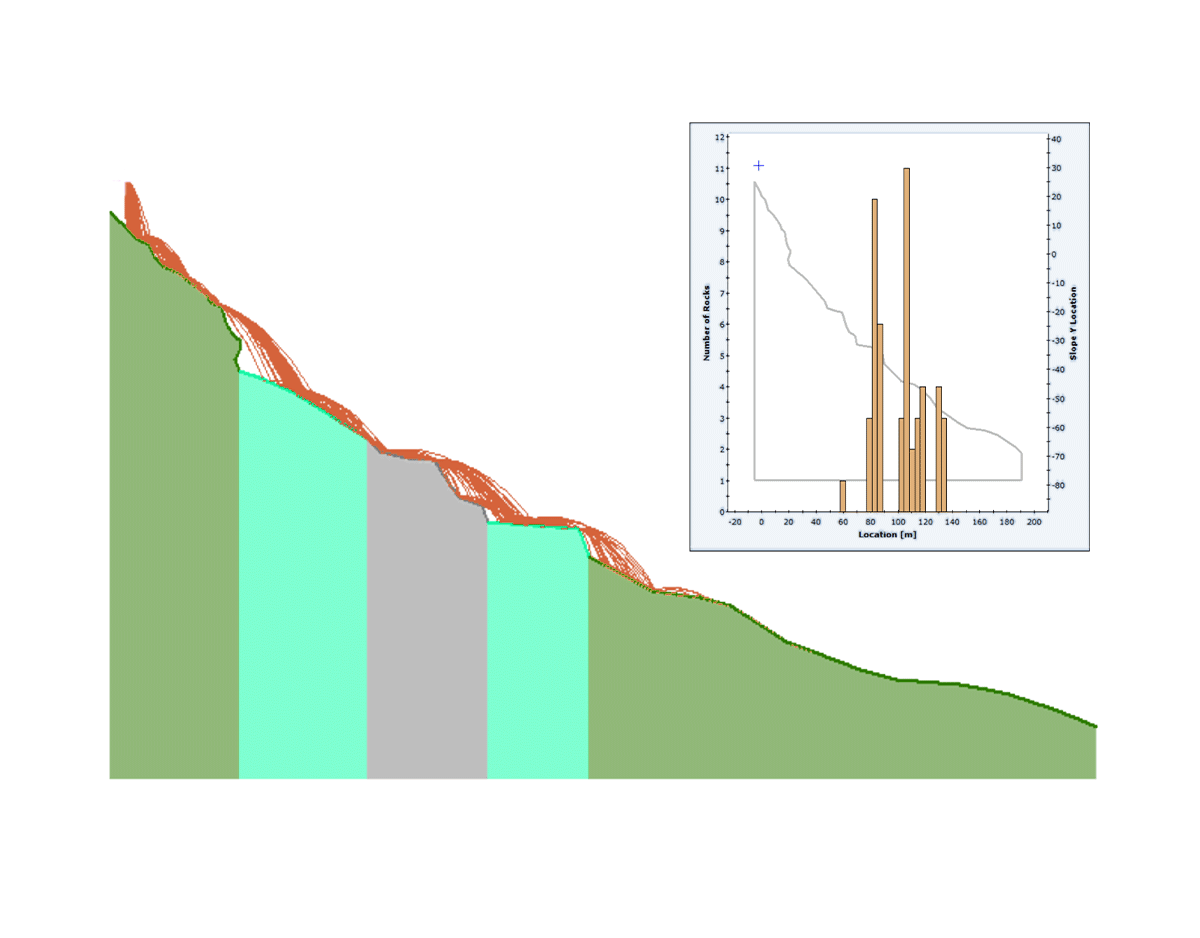

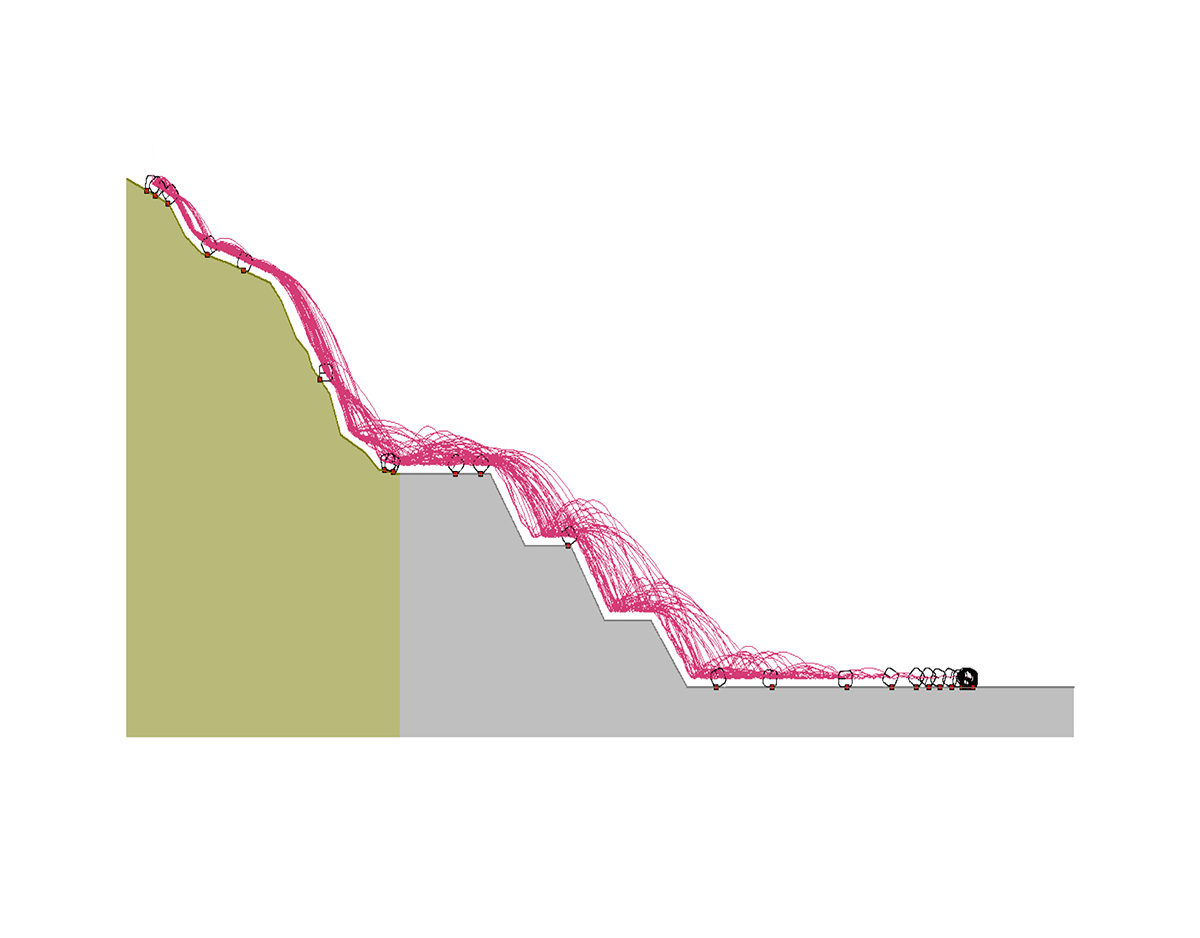

Vary your slope material, geometry, and rock seeders to obtain an array of statistical envelopes, distribution graphs for energy, velocity and bounce height and visualize rock paths and endpoint distributions.
Barrier Analysis & Design Tools
Perform sensitivity analysis by creating custom barriers or choosing from a large library of predefined barriers including Geobrugg, Maccaferri, Pfeifer Isofer, RISP SRL, and Trumer Schutzbauten.
Rigid Body Analysis

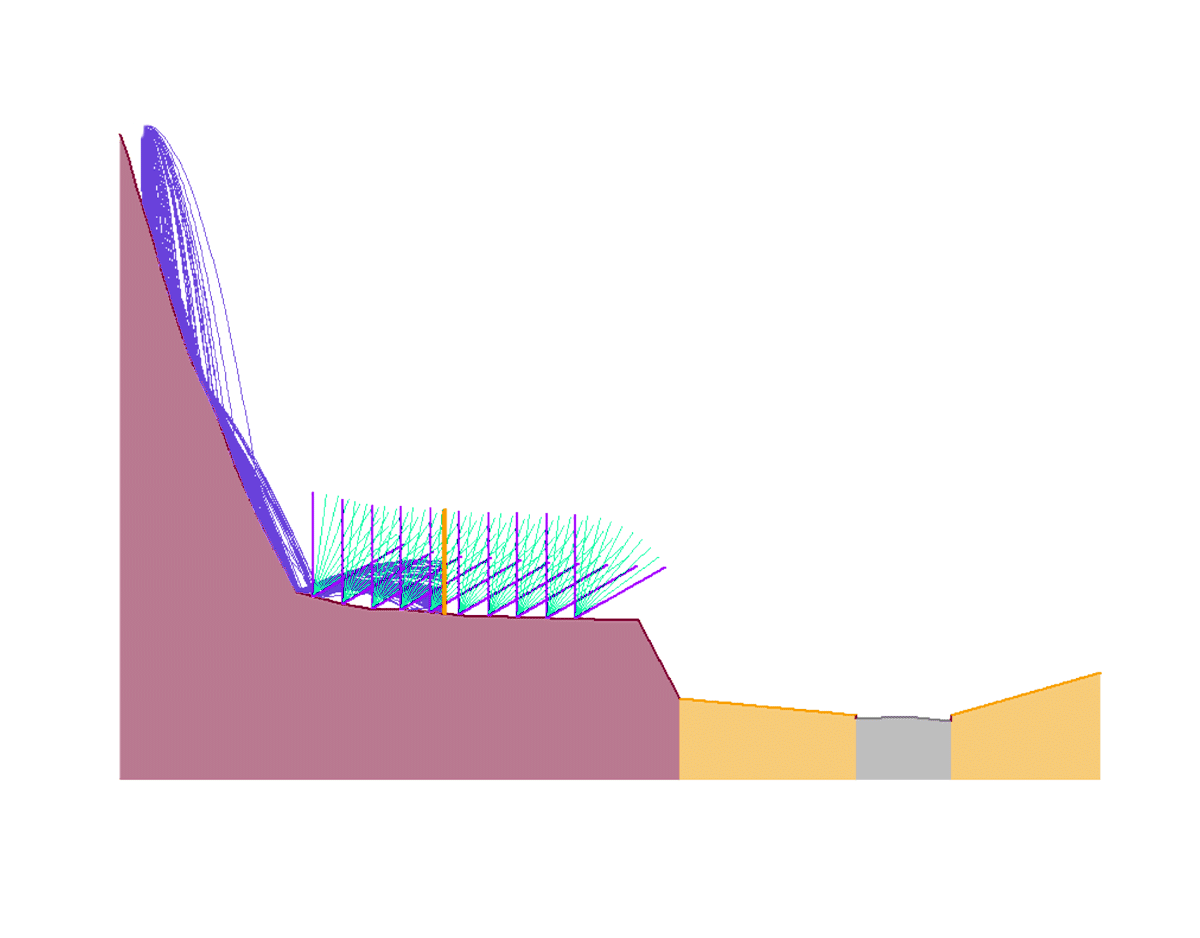

Get more control of your analysis by defining the shape and size of rock and enable options for scarring, viscoplastic ground drag and vegetation damping. The Rigid Body algorithm also considers the impulse reaction of the rock.
Specifications
Project Settings :
Select from Lumped Mass and Rigid Body Methods
Scale normal coefficient of restitution by rock mass or impact velocity
Psuedo-random number generation for repeatable results
Advanced simulation settings
Lumped Mass Method :
Model each rock as a particle with only mass
Use both normal and tangential coefficients of restitution
Models pseudo-rotation
Sliding with friction angle
Rigid Body Method :
Rock type library
Define rock shape and size
Polygonal rock shapes and smooth shapes
Custom polygons
Forest damping for treed slopes
Variable friction according to sliding distance
Viscoplastic ground drag
Sliding and rolling with dynamic coefficient of friction and rolling friction
Seeders :
Specify single location, point seeder series, and line seeders
Unlimited number of starting locations
Probability settings for seeder starting velocities and rotations
Pseudo-random number generation
Slope :
No restriction on slope geometry (e.g., overhanging sections)
Statistically defined material properties
Model crest loss
Statistically defined slope vertices
Import/export material properties
Import .dxf, .crsp (version 3 & 4) files
Import .bmp images
Define slope based on segment lengths and angles
Enhanced Barrier Analysis :
Unlimited number of barriers
Deformable barriers
Single variable barrier sensitivity analysis
Double variable barrier sensitivity analysis
Reusable barrier properties
Built-in library includes Maccaferri, Trumer-Schutzbauten, Geobrugg, PFEIFER Protective Structures and RISP barriers
Check barrier designs per Italian, Austrian codes or un-factored method
Earthen Berms :
Rockfall mitigation tool
Triangular, trapezoidal, or custom berm shapes
Calculate impact with berms or specify berms with infinite capacities
Data Collectors :
Gather information/statistics at any location
Filters :
Pick particular rock paths to create statistics/graphs
Define advanced filters based on combinations of criteria
Graphs Produced :
Histogram of rock endpoint locations
Mean, standard deviation, max graphs (energy, velocity, bounce height, etc.)
Distribution graphs show distribution at specific locations (same data as envelope graphs)
Create histograms or cumulative distributions for specific locations (impact locations, energy, etc.)
Toggle end reasons, seeders, rock types, and rock shapes added to Endpoint location, envelope, and distribution graphs
Output :
Copy graphs/plots to clipboard
Transfer plots to Excel with one click
Add property tables to the model view
Export rock paths to .dxf format
Copy geometry/parameters to clipboard
Advanced report generation
Save screen to image file or capture to clipboard
Slope and slope/chart views are easily added
Animate rockfall results
Display contact points
Save computed paths

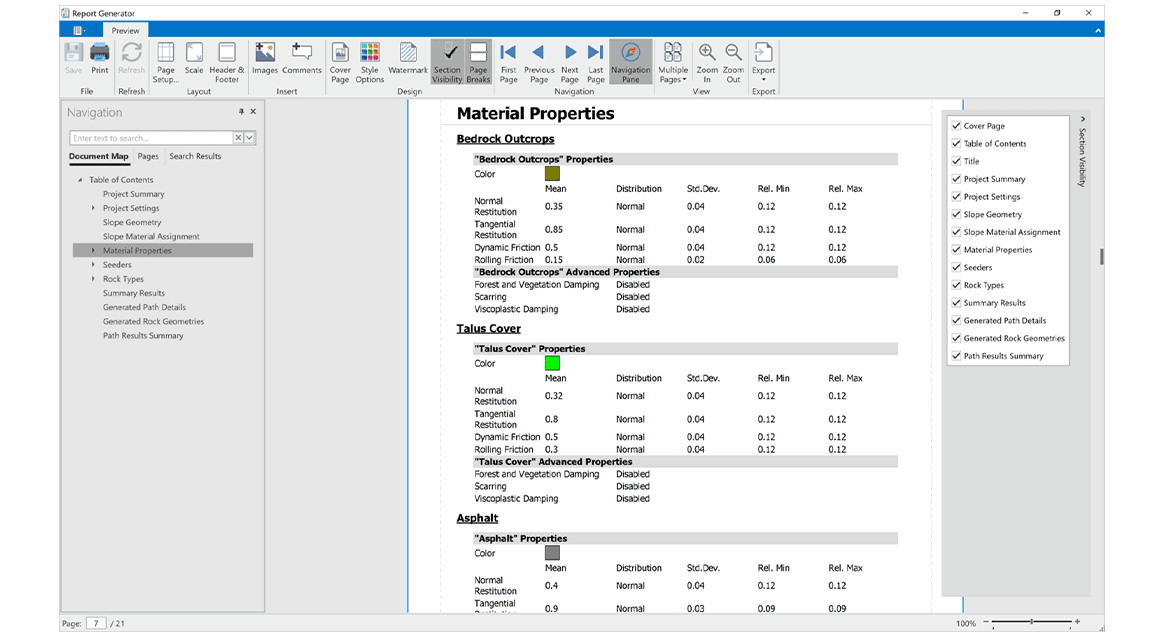

Report Generator :
Adding views to your Report
Adding barrier design reports to your Report
Export Report to PDF's
Common Material Type Libraries :
Table of coefficients of restitution included
Table of coefficients of friction included
Table of rock densities
Verification :
Extensive verification manual
