Product Overview
RockFall3

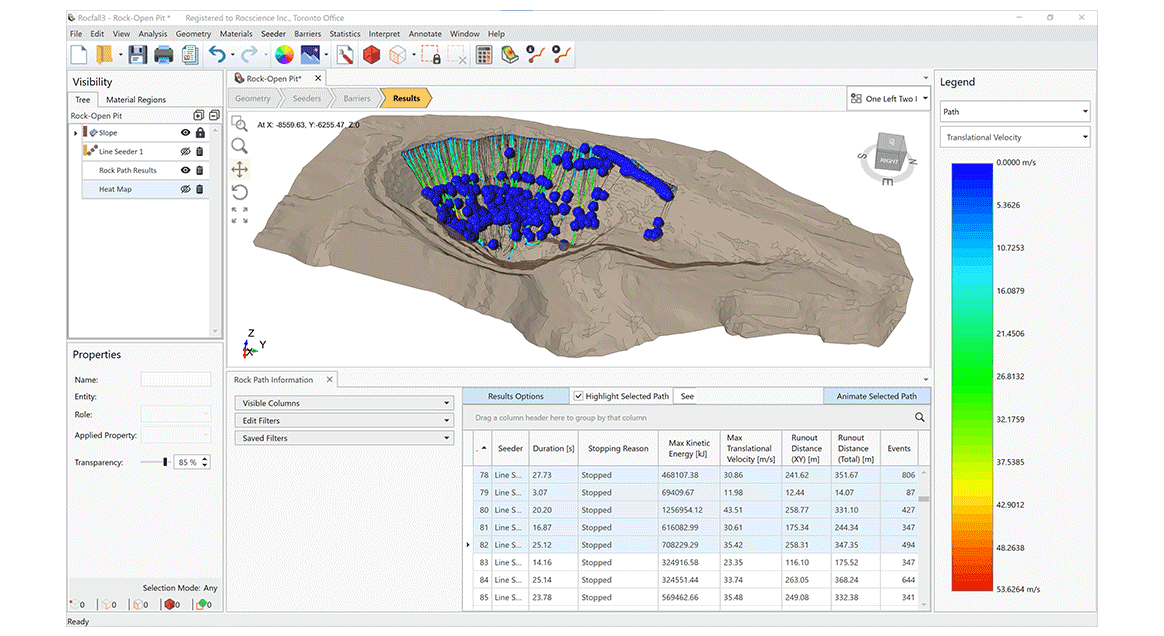

3D Model Creation

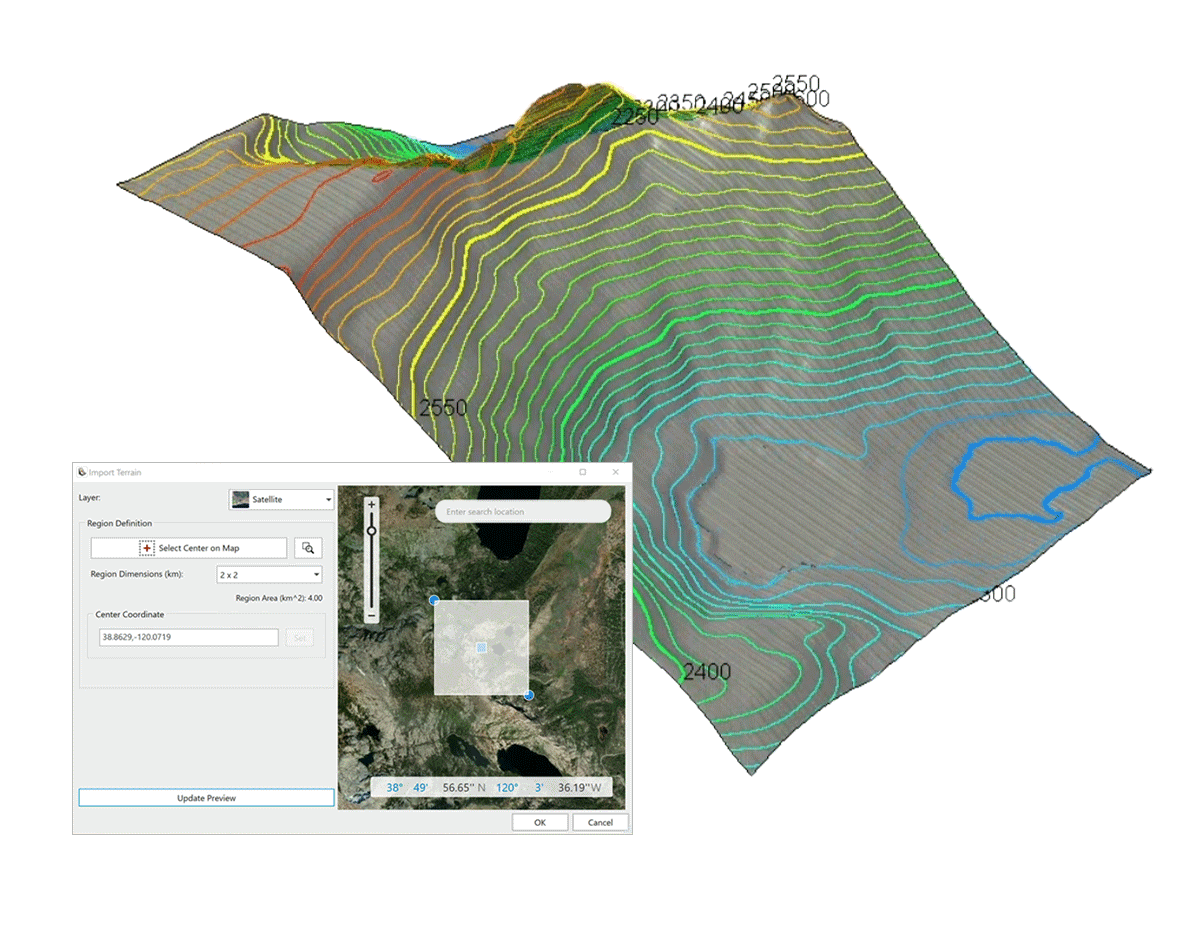

Constructing rockfall models is easier and faster than ever. Import ground surfaces from geological modelling or mine planning software or with the Terrain Generator, import digital elevation models directly from satellite data coordinates to speed up the model creation process.
Integration with RocFall2

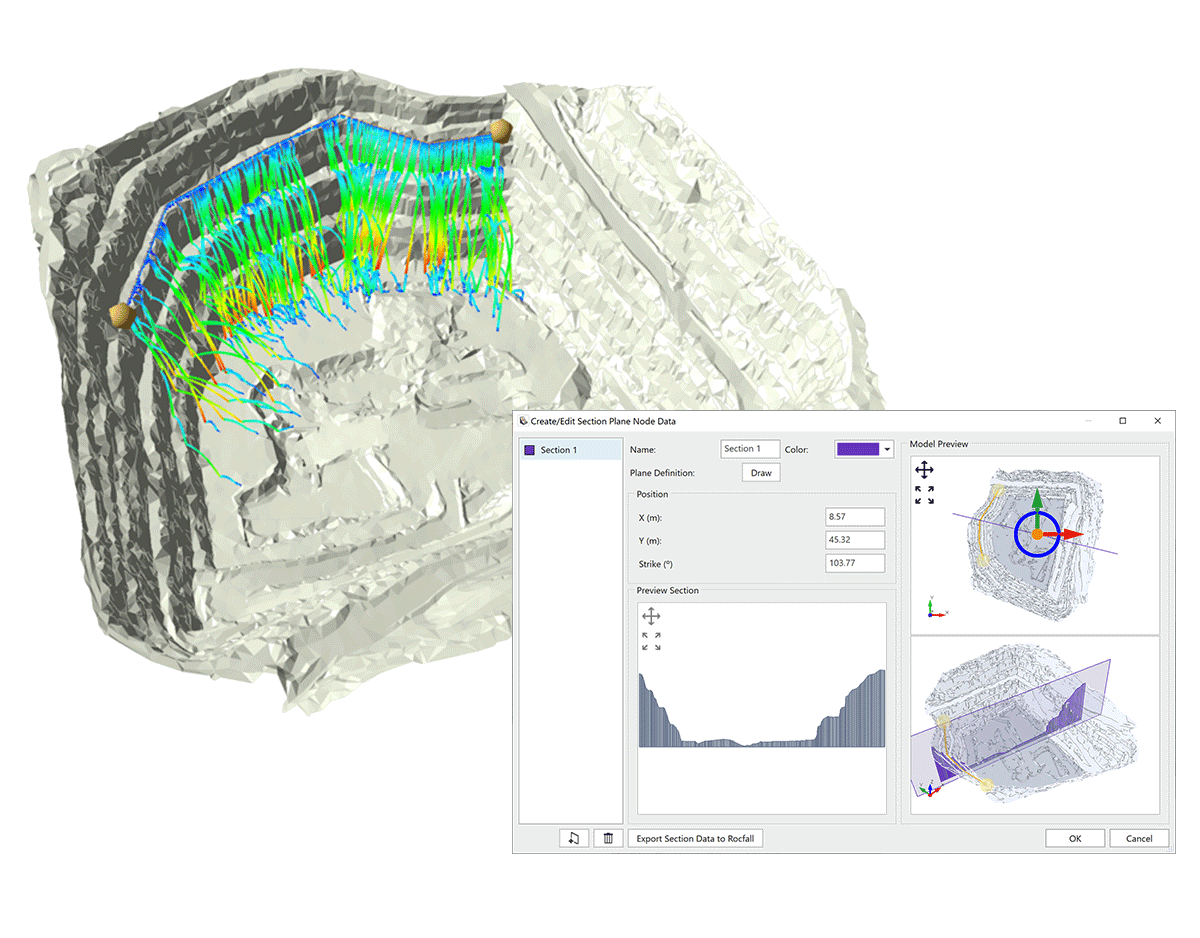

The integration of RocFall3 with its 2D counterpart RocFall2 allows you to import models directly from RocFall2 and extrude the geometry to easily create a 3D model. You can also define a 2D section within a full 3D model and export it back to RocFall2 with predefined materials and parameters to seamlessly run 2D analysis.

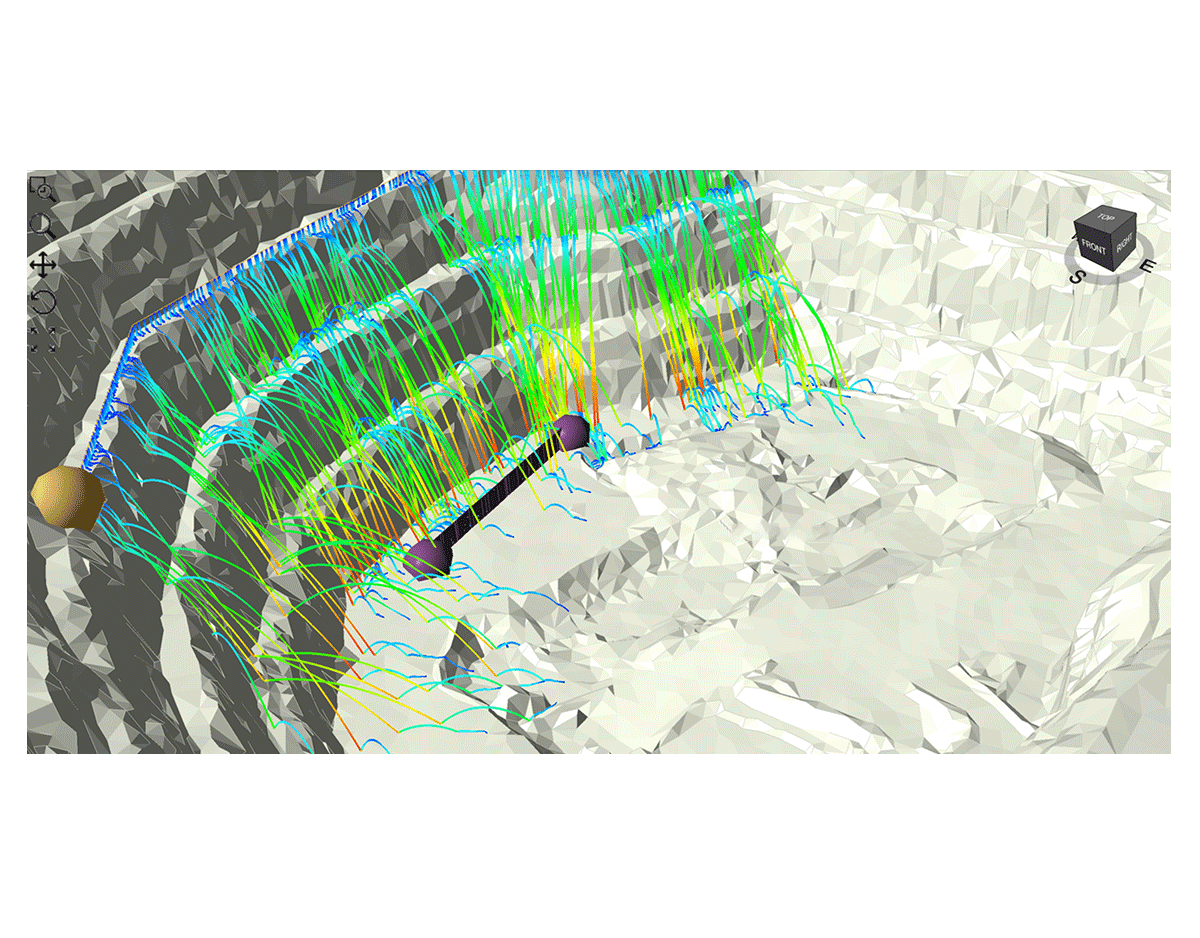

3D Barrier Design & Analysis
Analysis of rockfall stabilization measures is crucial to any slope design. RocFall3’s barrier logic is designed after Rocfall2 which provides flexibility in having an unlimited number of barriers, deformable barriers, energy capacity, elongation, adjustable heights, and more.
Specifications
Project Settings :
Select from Lumped Mass and Rigid Body Methods
Scale normal coefficient of restitution by rock mass or impact velocity
Psuedo-random number generation for repeatable results
Advanced simulation settings
Lumped Mass Method :
Model each rock as a particle with only mass
Use both normal and tangential coefficients of restitution
Models pseudo-rotation
Sliding with friction angle
Rigid Body Method :
Spherical rocks
Define rock size
Non-smooth dynamics impact mechanism
Use both normal and tangential coefficients of restitution
Seeders :
Specify single location, line seeders, plane seeders
Unlimited number of starting locations
Probability settings for each seeder
Slope :
Statistically defined material properties
Common type material properties library
Import .obj, .dxf, dtm and other common geometry files
Define material regions
Texture Mapping:
Assign texture image to the slope
Terrain Generator :
Built in app to import slope geometry and texture mapping from satellite data
Enhanced Barrier Analysis :
Unlimited number of barriers
Barrier properties
Built in barrier properties library from major manufacturers
Graph barrier impact statistics
Output :
Detailed Rock Path Information
Copy graphs/plots to clipboard
Transfer plots to Excel with one click
Copy geometry/parameters to clipboard
Advanced report generation
Save screen to image file or capture to clipboard
Animate rockfall results
Save computed paths
Graphs Produced :
Histogram of rock endpoint locations
Path Contours
Surface Heat Maps
Filters :
Define advanced filters based on combinations of criteria
Report Generator :
Adding Views to your Report
Export report to pdf
Verification :
Extensive verification manual
