Product Overview
Rocplane
Planar Rock Slope Analysis
Quickly and easily define planar wedge models, visualized in 2D and 3D. Perform planar sliding stability analysis using Limit Equilibrium Method. Model the effects of joint shear strength, water pressure, seismic and external forces, and supports in the computation of the factor of safety.
Probabilistic Analysis
Determine the probability of failure of your model by assigning statistical distributions to variables including the slope geometry, joint orientation and strength, water and seismic forces, and supports. View the statistical data in histogram, cumulative and scatter plots.

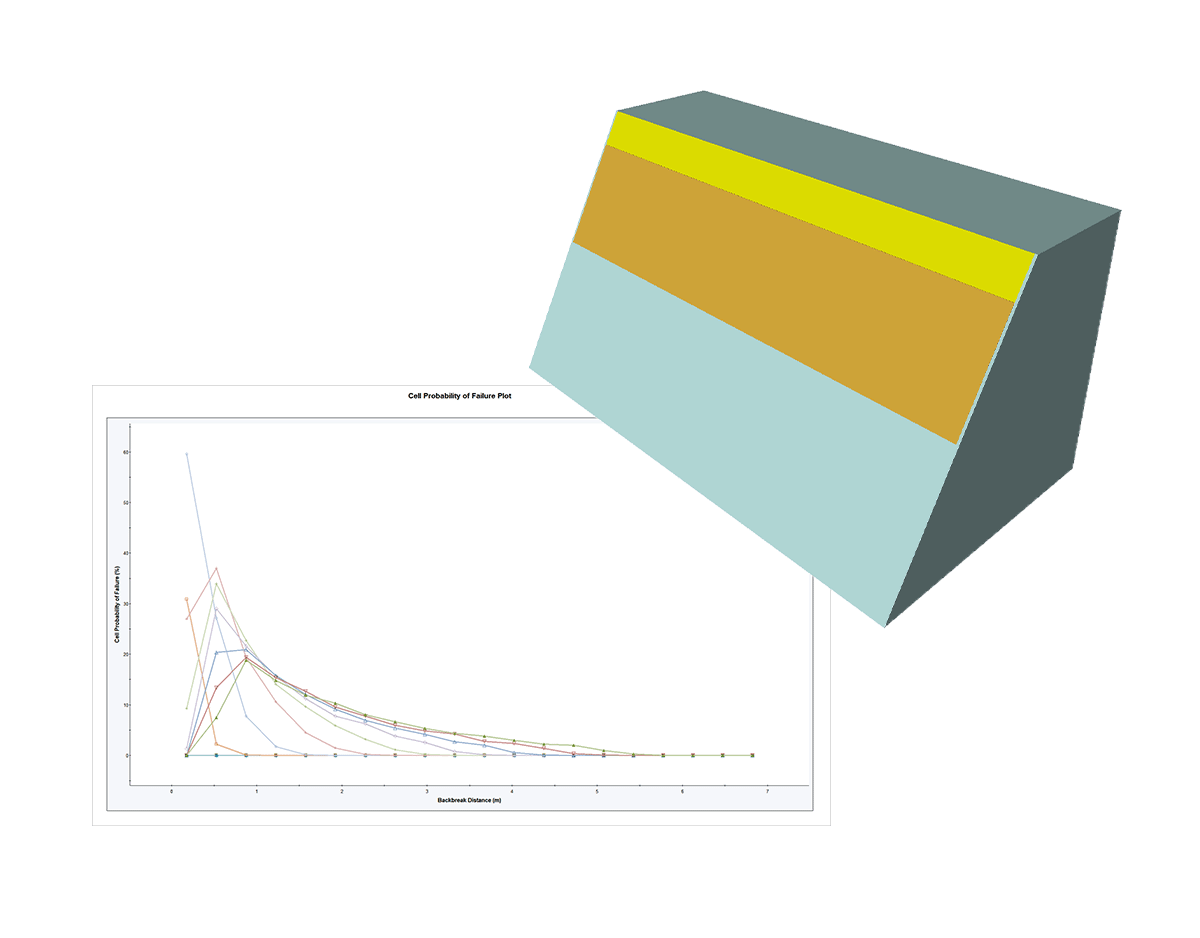

Bench Design Tools and Charts
Conduct Bench Design as an extension of RocPlane’s Probabilistic analysis feature. Input design parameters and statistical joint information to optimize the bench slope angle. Calculate required bench width, considering spill width and backbreak distance.
Specifications
Analysis :
Deterministic or probabilistic
Metric or imperial units
Eurocode design standards
Bench design
Analysis Results :
Sidebar information panel
Info Viewer analysis summary
One-click export of data and charts to Excel
Automation :

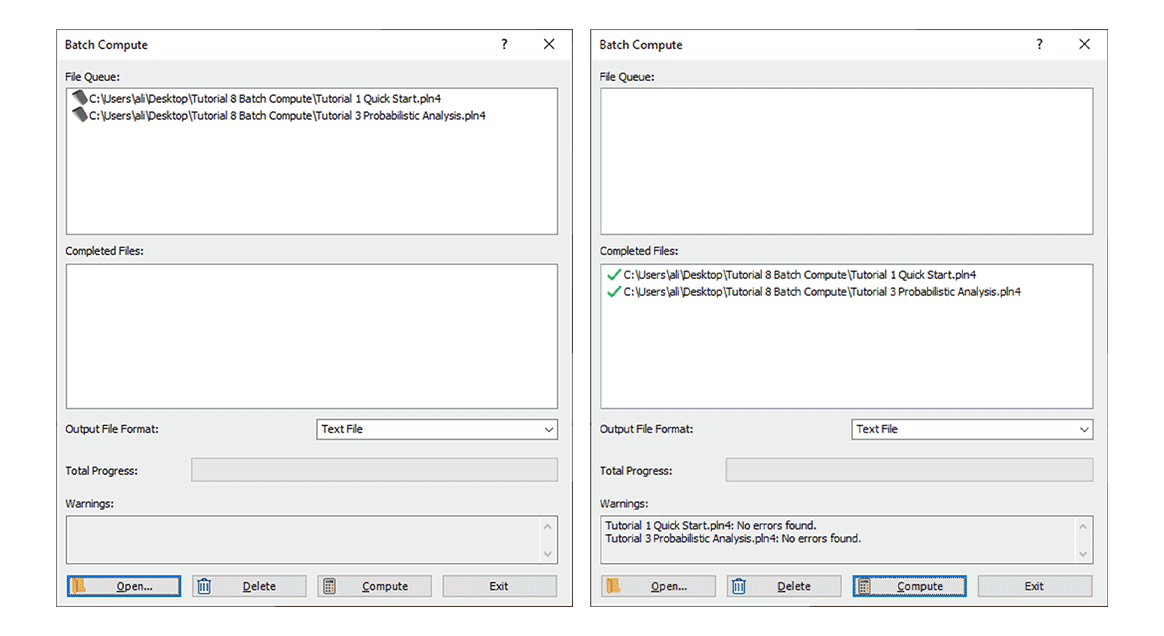

Batch Compute model fi les
Automate Model Inputs from Excel
Bench Analysis :
Optimize bench design
Fixed bench width or inter-ramp angle
Joint persistence determines if wedge can form
Loading :
Water pressure on joints
Ponded water analysis
Seismic coefficient
External forces
Pressure (surcharge or support)
Probabilistic Analysis :
Statistical distributions—normal, uniform, triangular, beta, exponential, lognormal, gamma

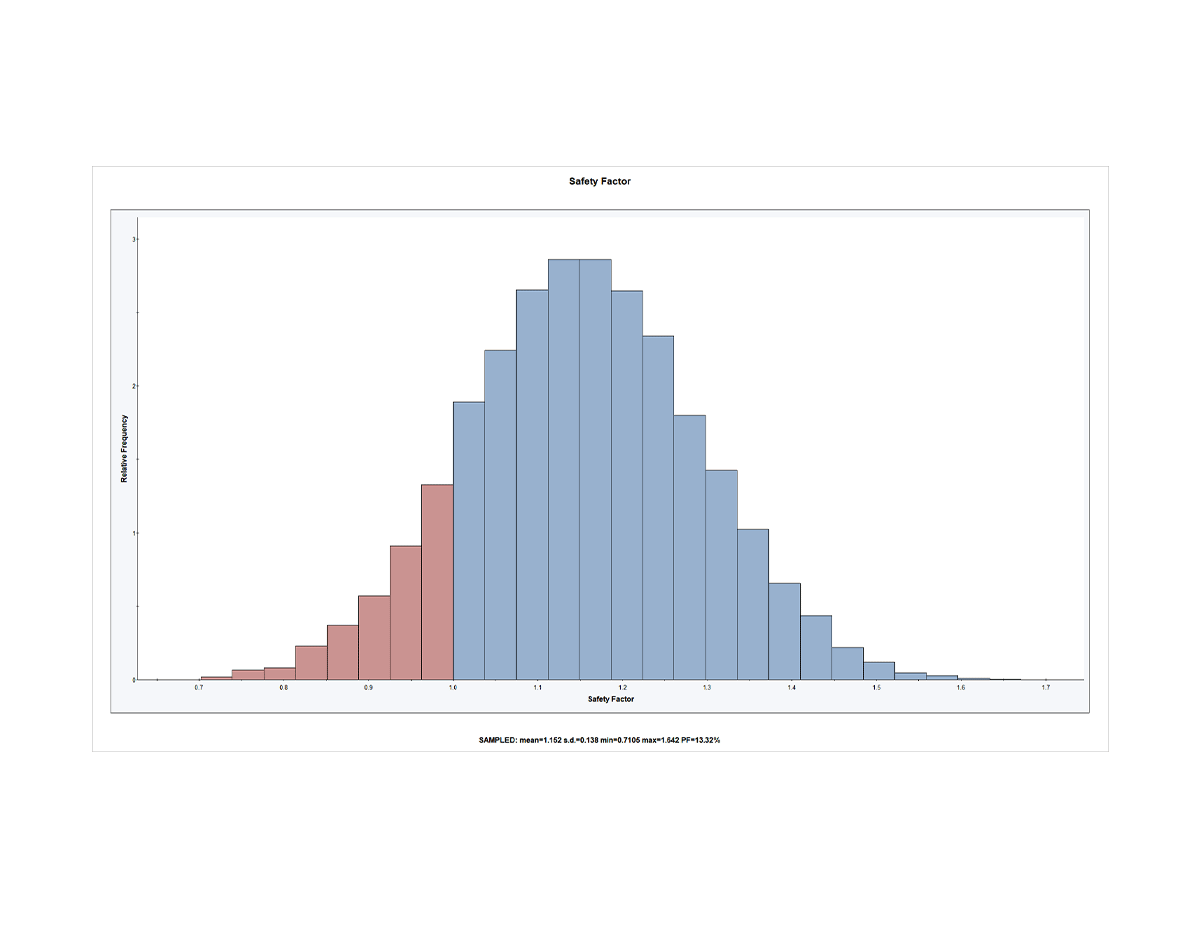

Histogram, cumulative, and scatter plots
Probability of failure, reliability index
Monte Carlo or Latin Hypercube simulation
Random or pseudo-random sampling
Shear strength—define variability of mean strength envelope or individual strength parameters
Correlation coefficient for cohesion and friction angle
Best fit distribution, regression line
Highlight failed wedges on plots
Interactive sampler
Select random wedges
Sensitivity Analysis :
Determine effect of individual variables on safety factor
Multiple variables on one plot
Shear Strength :
Mohr-Coulomb
Barton-Bandis
Power Curve
Hoek-Brown
Waviness angle
Slope Properties :
Dip angle of slope, upper face, and failure plane
Slope height
Bench width
Overhanging slope
Unit weight
Support :
Rock bolts
Define bolt properties from the following bolt types: Mechanically Anchored, Grouted Dowel, Cable Bolt, Split Set, Swellex, and Simple Bolt Force
Option to use bolt Shear Strength
Option to apply Bolt Orientation Efficiency factor
Pressure
Active or passive support
Tension Crack :
Optional tension crack plane
Vertical or non-vertical
User-defined or automatic location (minimum FS)
Viewing Options :

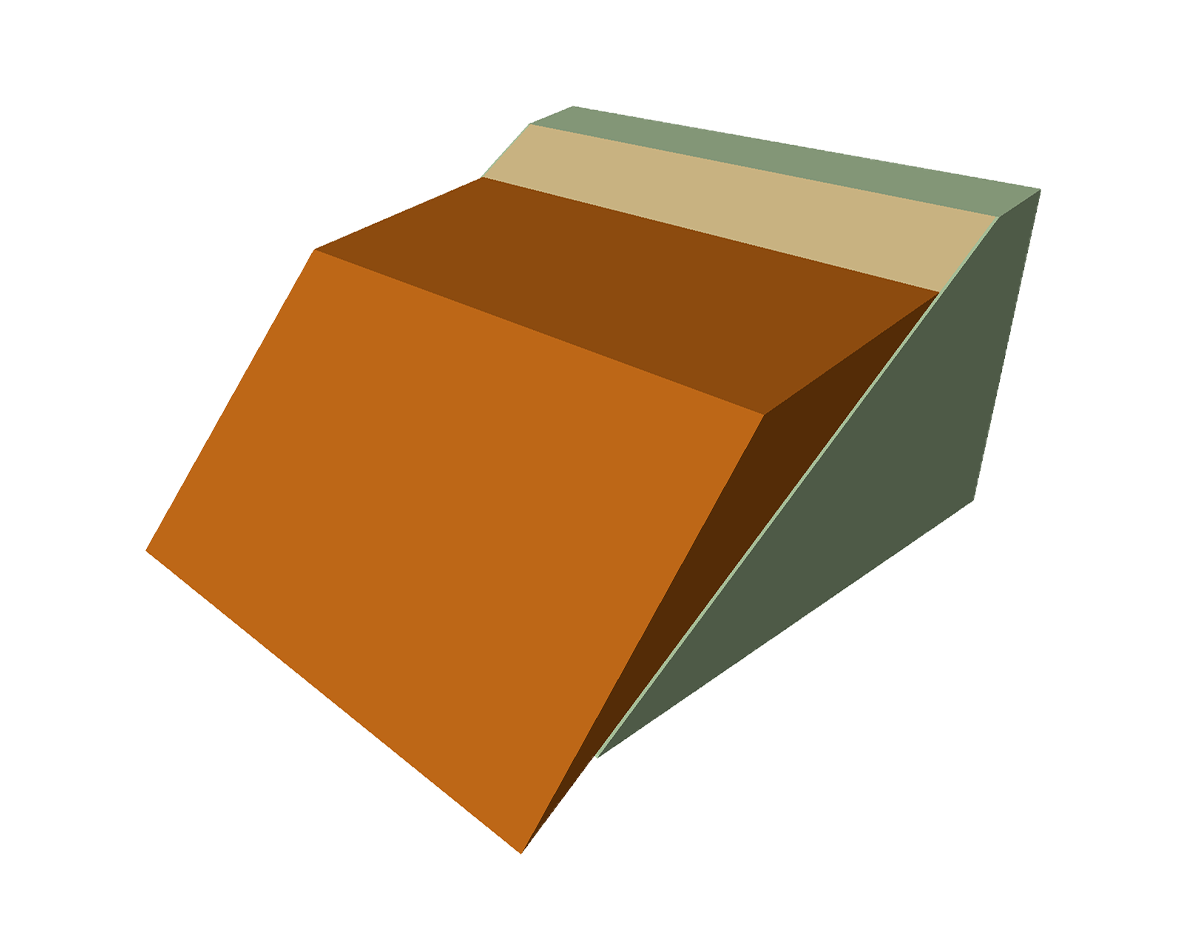

3D wedge view
Interactively rotate, zoom, and pan
Move wedge along sliding plane
2D view with dimensioning and annotations
Export image fi les: .png, .jpg, .gif, .bmp, .emf, .wmf
Wedge Size :
Scale wedge size by height, bench width, persistence, and volume
Minimum wedge size
