Product Overview
Rsdata
Rock, Soil & Discontinuity Analysis
Fully understand your rock and soil material properties by analyzing their strength characteristics and constitutive behaviour to determine strength envelopes and other material parameters.

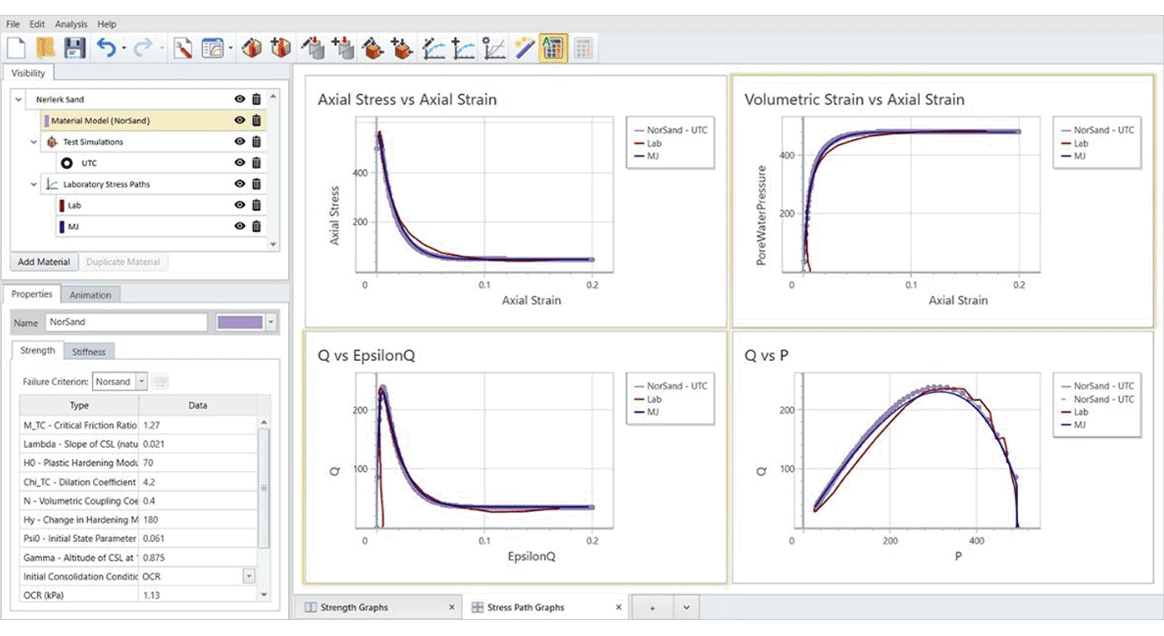

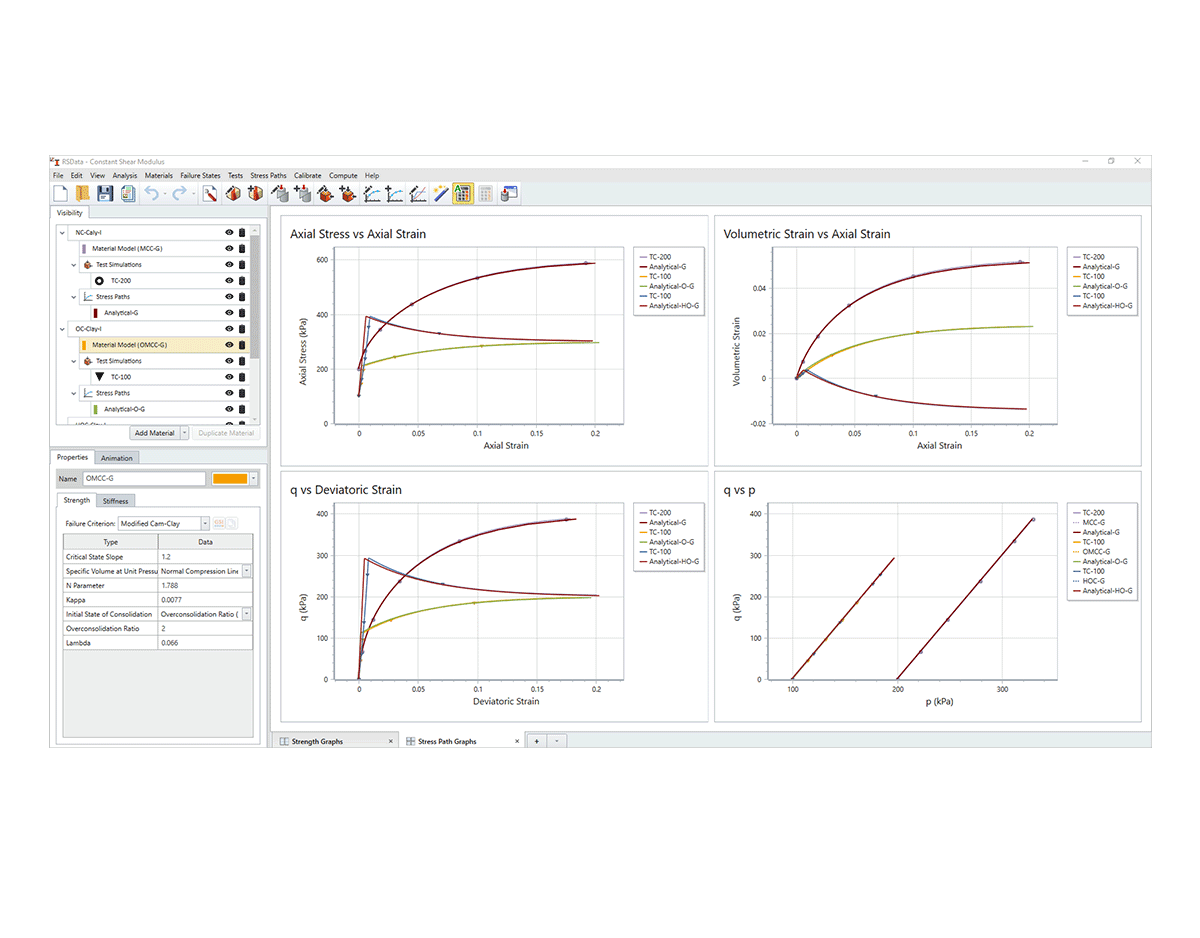

Virtual Soil Mechanics Lab
Utilize constitutive models like NorSand and Modified Cam Clay to get an in-depth look into the stress-strain relationship of your soil materials.

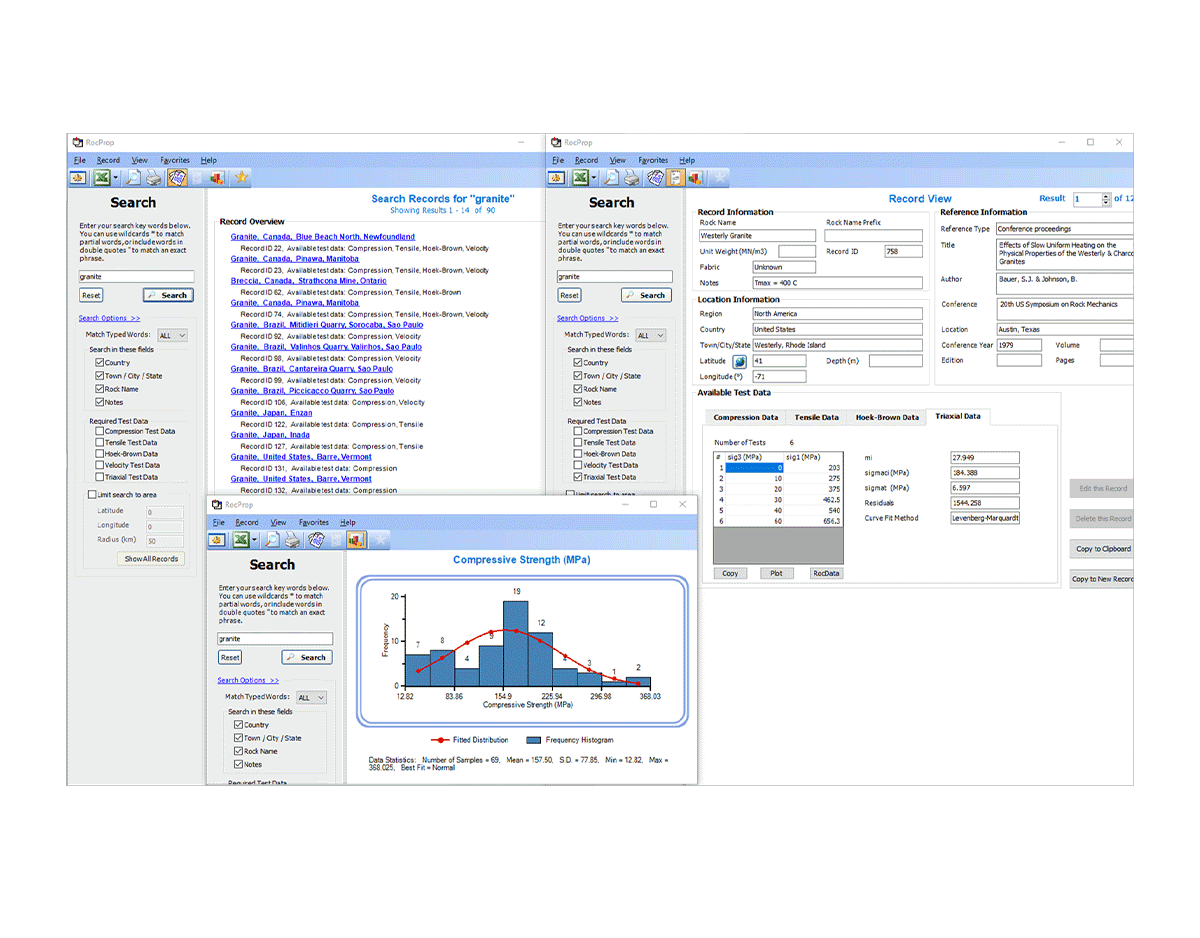

RocProp
A bonus of RSData is the addition of RocProp, a database of intact rock properties which runs as a standalone application.
Specifications
Additional Output Parameters :
Hoek-Brown: rock mass tensile strength, compressive strength, deformation modulus
Mohr-Coulomb: uniaxial compressive strength, alpha angle
Power Curve: uniaxial compressive strength, tensile strength
Analysis of Test Data :
Triaxial or direct shear test data
Lab or field (rock mass) data
Curve fitting methods: Modified Cuckoo, Levenberg-Marquardt, Simplex, Linear Regression, user-defined
Error summation: vertical, basic, parabolic tensile, Generalized Fairhurst
Absolute and relative best fit residuals
Data entry—in spreadsheet, from clipboard, import fi le (.roc, .rlb, .txt., .csv)
Tensile cut-off options
Data uncertainty analysis
Estimating Input Parameters :
GSI calculator
Estimation of input parameters from built-in charts and tables: GSI, mi, sigci, D, C, phi, JRC, JCS, phir
Equivalent Mohr-Coulomb Parameters :
Equivalent cohesion and friction angle for non-linear criteria
User-defined stress range
Instantaneous (tangential)
Cohesion and friction angle
Exporting Results :
One click export to Excel
Copy to clipboard
Export image fi le (.jpg, .bmp, .gif, .png)
Export Slide2 shear-normal function

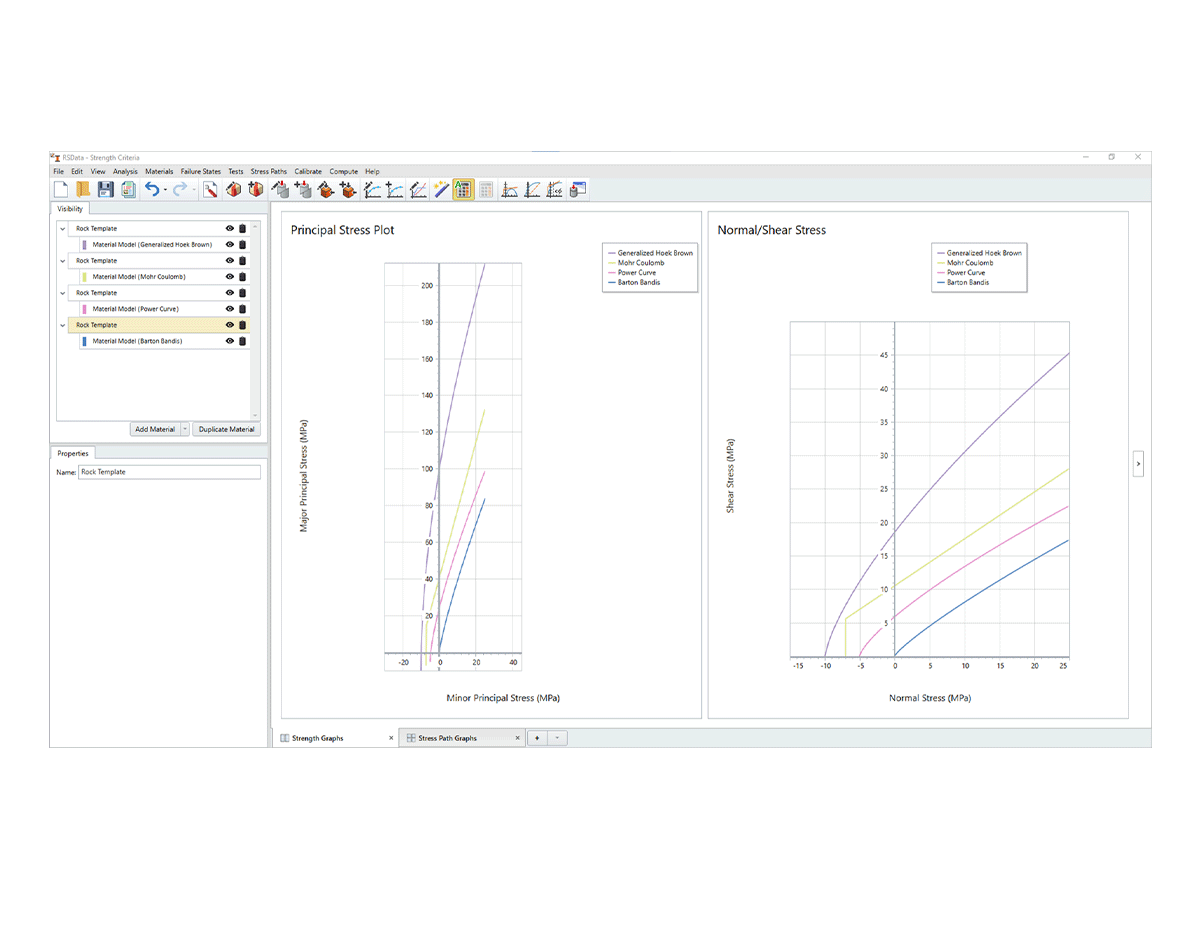

Failure Envelope Plots :
Principal stress plot (sigma1, sigma3)
Shear-normal plot (tau, sigmaN)
Linearized principal stress plot ((sigma1-sigma3)/2 , sigma3)
Interactive plot display
Stress sampler
Instantaneous Mohr-Coulomb sampler
Equivalent Mohr-Coulomb envelope for non-linear criteria
Display test data on plots
Multiple materials
Formatting and customization of plots
Info Viewer :
Save as HTML
Copy to clipboard
Open in Browser
RocProp Database :
Primary database of intact rock properties (600+ records)search and filter by rock type, data type, geographical coordinates etc.
Charting and statistics
User database
Link to Google Maps
Export to Excel
Strength Criteria :
Mohr-Coulomb
Generalized Hoek-Brown
Barton-Bandis
Power Curve
Stress Units :
Metric (MPa, kPa, tonnes/m2)
Imperial (psi, psf, ksi, ksf, tons/ft2)
