Product Overview
Settle 3
Settlement Analysis

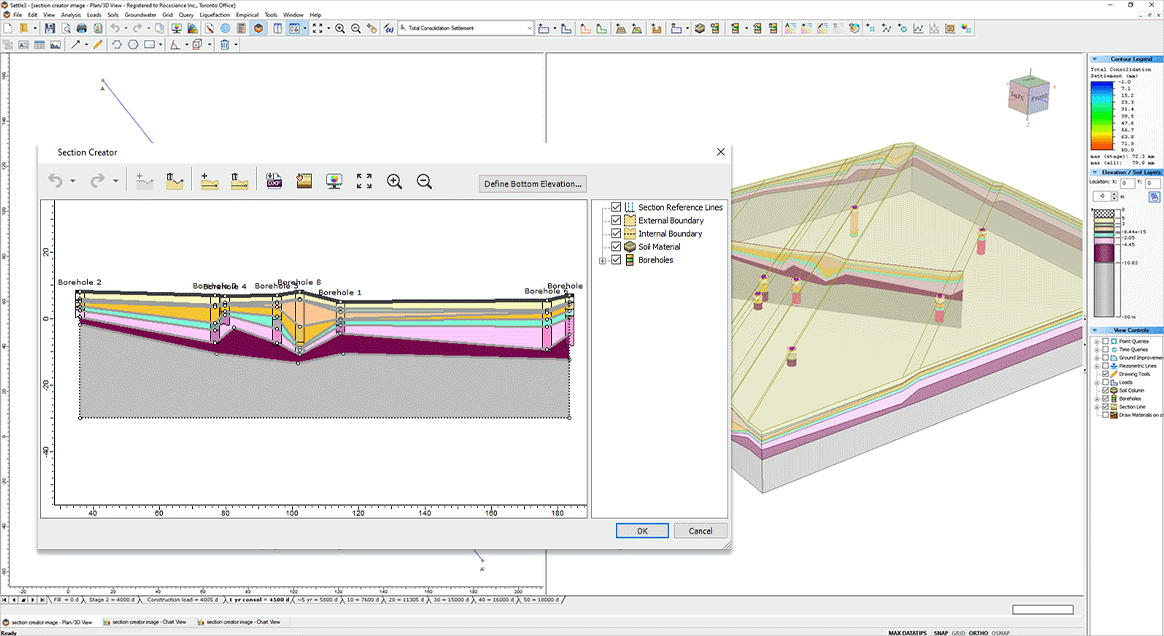

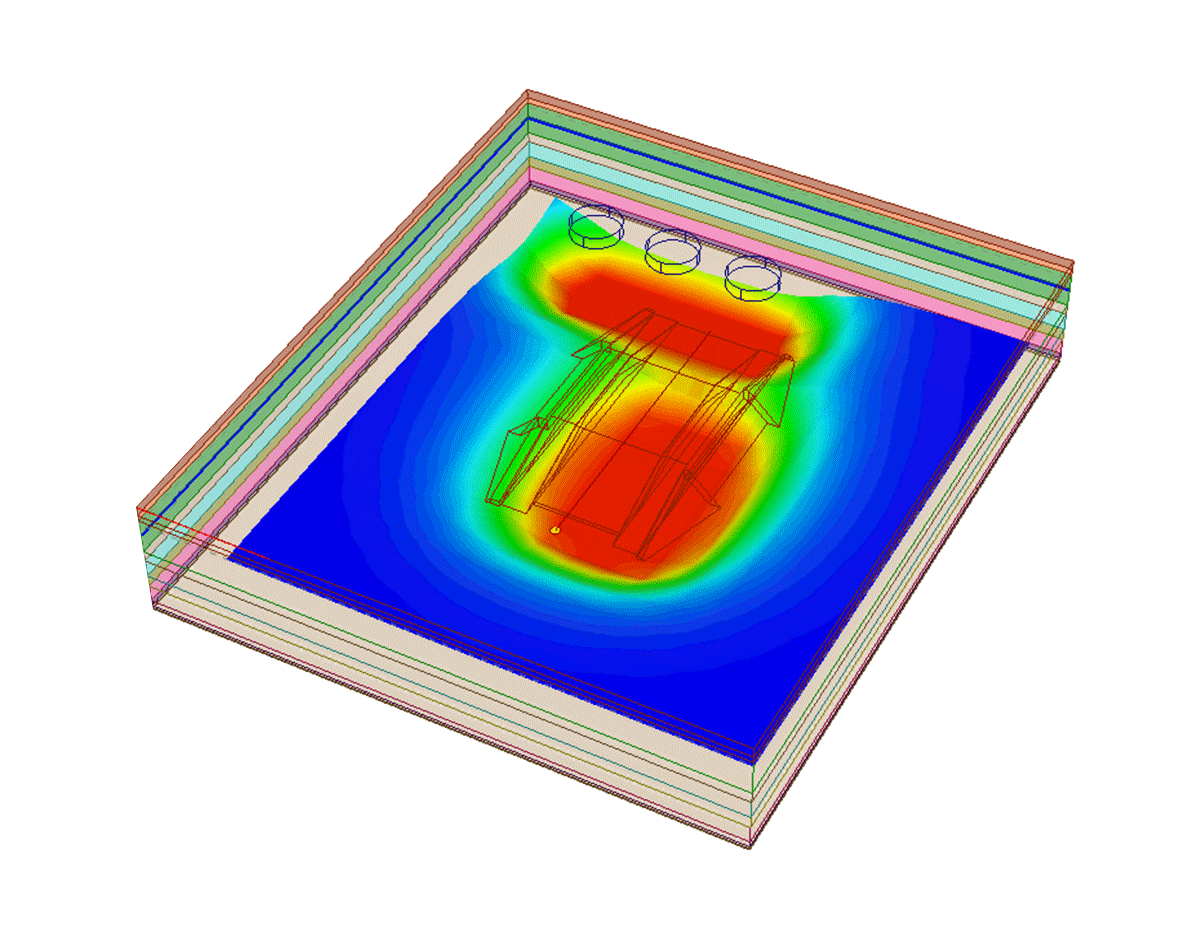

Perform soil settlement analysis of embankments, foundations, and surface loads. Analyze immediate settlement, primary consolidation and secondary settlement and view your results in 3D.
CPT Analysis

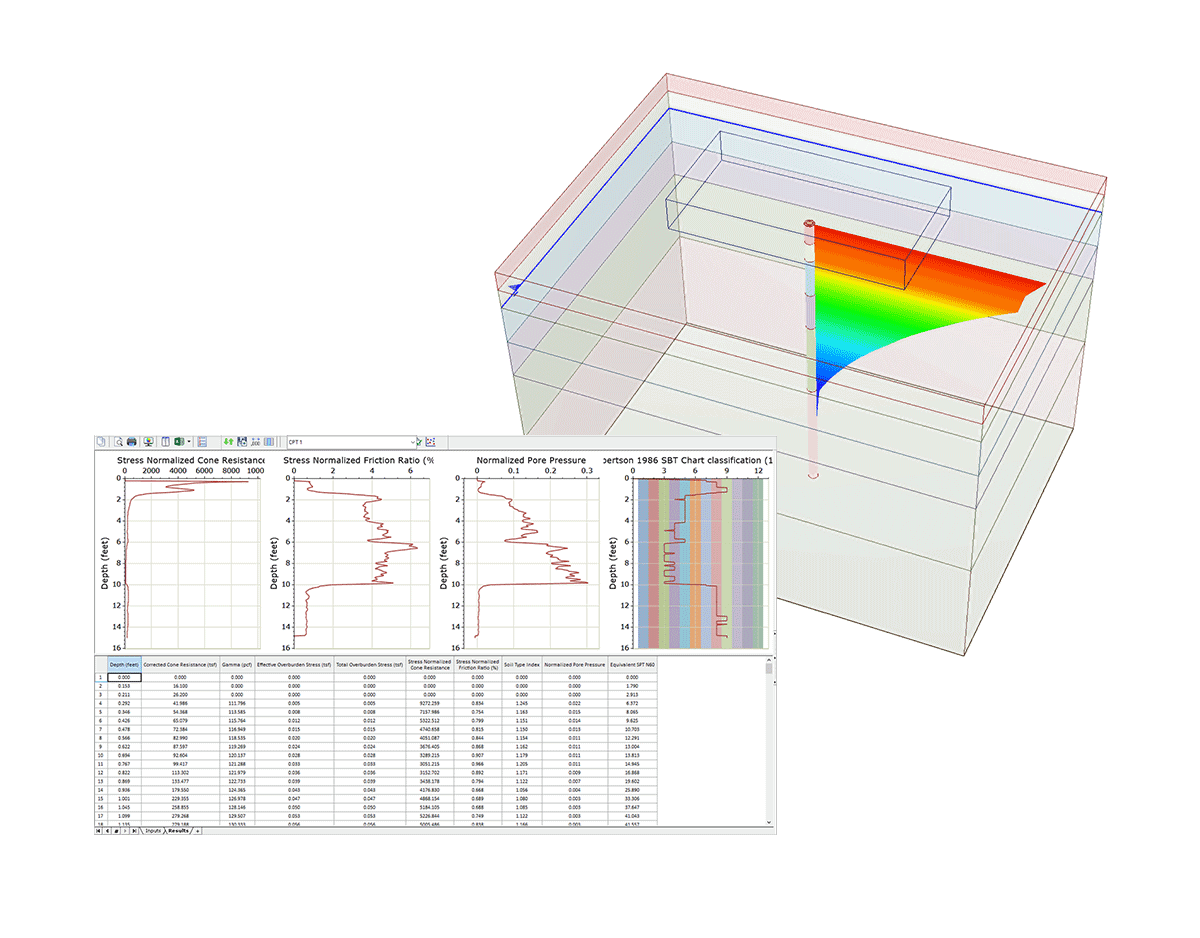

Used as a fully-functional standalone CPT interpretation software or in conjunction with Settle3’s liquefaction analysis module, collect up to 5 independent readings in a single sounding.
Liquefaction

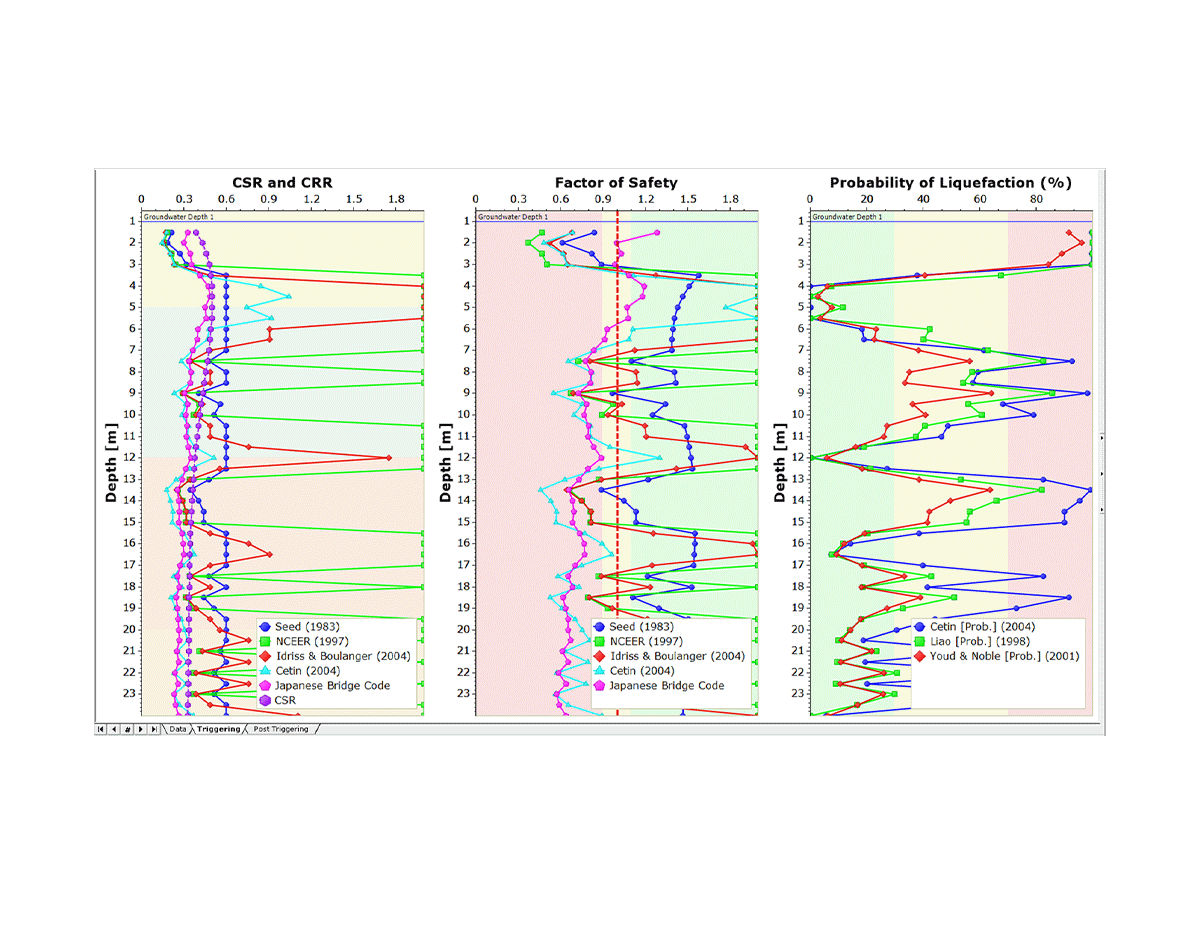

Liquefaction analysis can be done in addition to settlement analysis or on its own. Liquefaction results can be calculated based on Standard Penetration Test (SPT), Cone Penetration Test (CPT), or Shear Wave Velocity (VST) data.
Specifications
Analysis :
Non-horizontal soil layers
Multiple boreholes
Horizontal soil layers
Multiple layers/soil types
Multiple loads
Multi-stage analysis
Time-dependent consolidation based on Terzaghi theory
Immediate, primary and secondary consolidation (creep)
Hydro-consolidation
Ground improvement sensitivity
Compute :
Field point grid
Line query
Point query
Back analysis using preload or time
Point query
Contour Data :
Settlement
Secondary consolidation
Stress
Pore pressure and excess pore pressure
Modulus of subgrade reaction
Virgin and recompression consolidation settlements
Horizontal stresses
CPT Data Interpretation :
CPT analysis based on qc, fs, and u2
Determine soil profile
Over 25 parameters calculated
Five SBT options
Empirical Methods :
Burland and Burbidge
Schmertmann
Peck, Hanson, Thornburn
Schultze and Sherif
D’Appolonia
Export :
One click export to Excel
Copy to clipboard
Export image files
Info Viewer
Drawing, annotation, and dimensioning toolkit
Customize/save view options
Groundwater :
Define multiple water grids
Define multiple piezo lines
Staged water table elevation
Horizontal drainage
Wick drain regions
Liquefaction :
Post-triggering LDI and settlement
Pre-defined SPT calculation methods
Ground profile for LDI
SPT, CPT, VST data
Dry ground settlement using SPT or CPT
Multiple analysis methods
Comprehensive results
Loading :
Different shape load
Staged loading, pre-load
Embankment
Excavation
Uniform or variable
Flexible or rigid
Staged loading
Horizontal loading
Material Types :
Linear elastic
Non-linear
Janbu
Koppejan
Collapsible soil
Variable with depth
Database of typical properties
Modelling :
Interactive editing
Right-click shortcuts
Easily define arcs and circles
Import/export .dxf files
Grid/vertex/object snapping
Interactive sidebar
Depth control
Undo/redo
Metric or imperial units
Data tips
Ground improvement: Stone Columns, Vibro-Compaction
Embankment Designer
Non-Horizontal Ground Surface :
Define using boreholes and CPT points
3D surface contour
Define soil profile by depth or elevation
Stress Computation Method :
Westergaard
Vertical ratio (2:1, angle)
Multiple Layer
Boussinesq
Visualization :
Plan view/3D view
Plot contours on horizontal, vertical or user-defined planes
Plot results on vertical or horizontal lines
Plot multiple stages, times or locations on one graph
Animate/rotate 3D view
Isosurfaces
Videos
