Product Overview
Slide3

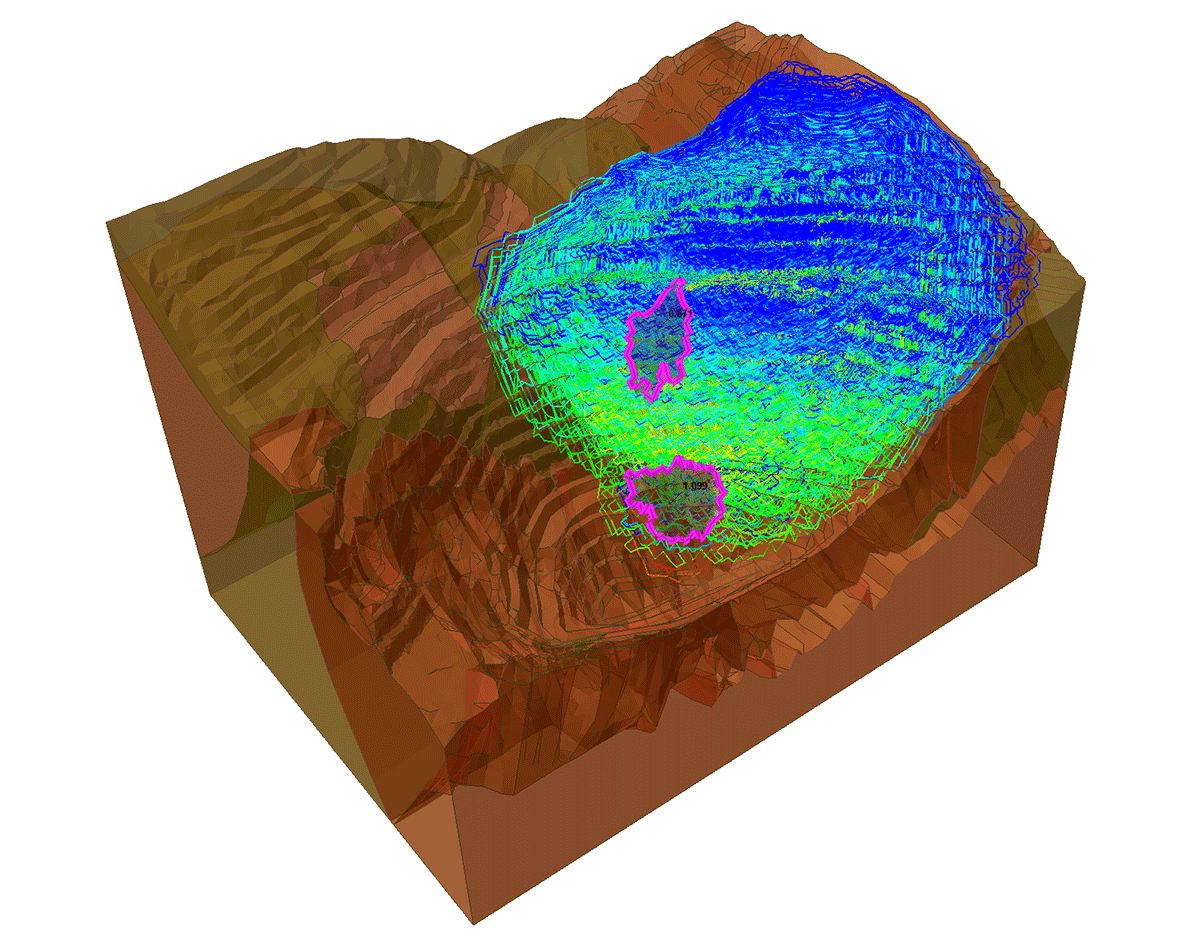

Powerful Failure Surface Searching
Locate critical failure surfaces and compute the correct factor of safety using a combination of global metaheuristic search methods and local surface altering technology.

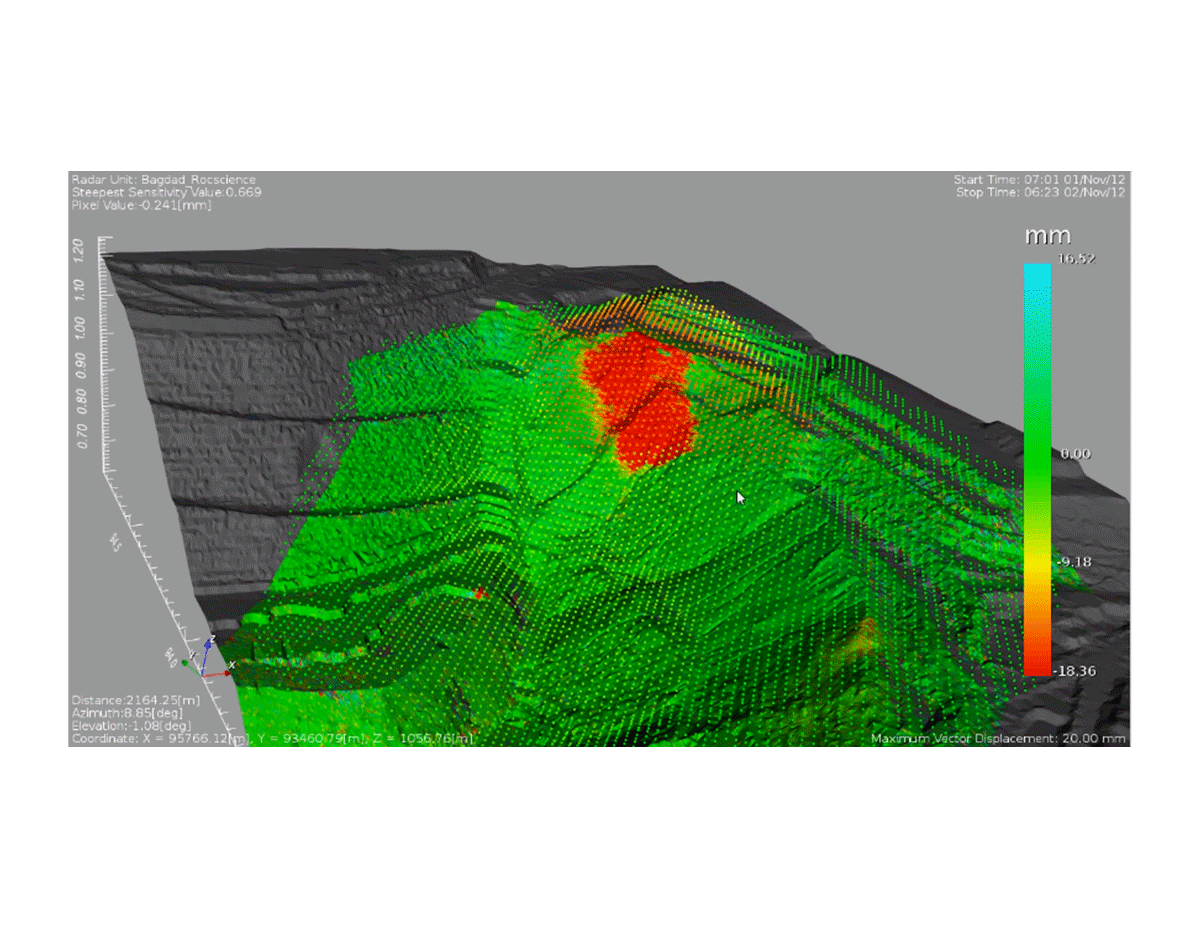

Integration with Radar Data
Streamline your workflow and get more detailed insights by integrating 3D wireframes (representing surveyed topography, geological surfaces, modelled faults, etc.) directly into your 3D models.

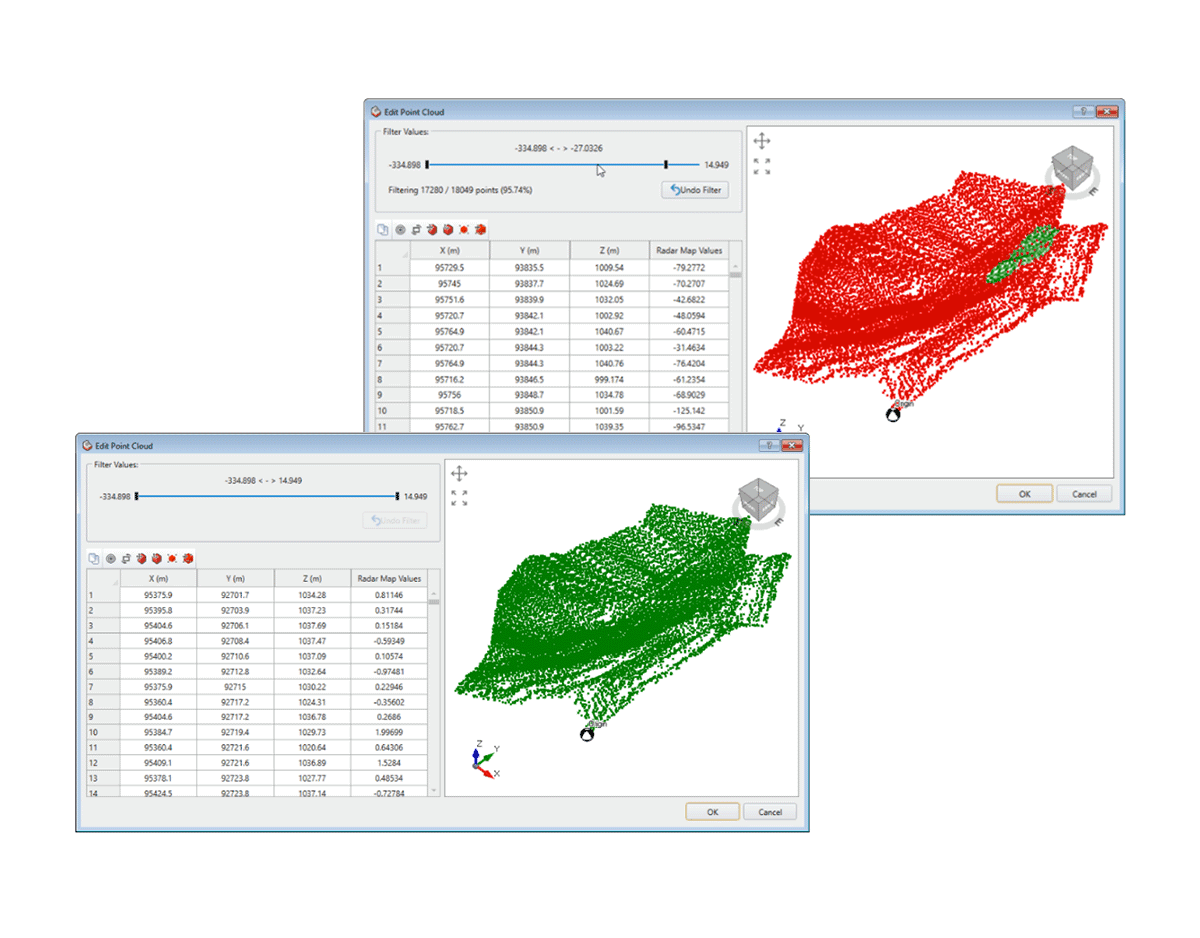

3D Model Creation – Point cloud, LiDar, Leapfrog
Constructing slope stability models is easier and faster than ever before. Import surfaces from geological modelling or mine planning software or use built-in surface construction methods using coordinates or borehole data.
Specifications
3D Slip Surface Shapes :
Spherical
Ellipsoidal
Spline Surface
Composite
Advanced Features :
Excess Pore Pressure
Rapid Drawdown Analysis
Unsaturated Shear Strength
Anisotropic Regions
Tension Cracks
Analysis Methods :
Bishop
Janbu
Spencer
GLE with intercolumn force function
Computation :
Very fast compute engine
Metric or imperial units
Data Interpretation :
View 3D global minimum slip surface
View all slip surfaces
View contour plots of analysis data on
slip surface (e.g. stress, strength, pore
pressure)
View safety maps on the surface of
the model or on cutting plane through
your model
Show support forces
Data tips for any object
Annotation and dimensioning tool kit
Export to Excel
Export image fi les
Loading :
Point loads
Distributed loads (uniform or variable)
Seismic loads
Modeling :
Create 3D models with CAD tools
Import 3D surfaces with .dxf, .dwg, .obj,
.stl, .step, .iges, .tin, .asc, .xyz fi les
Borehole data entry
Construct geometry profile from
borehole data
.dxf import/export
One-click material assignment
Import RS3 fi les

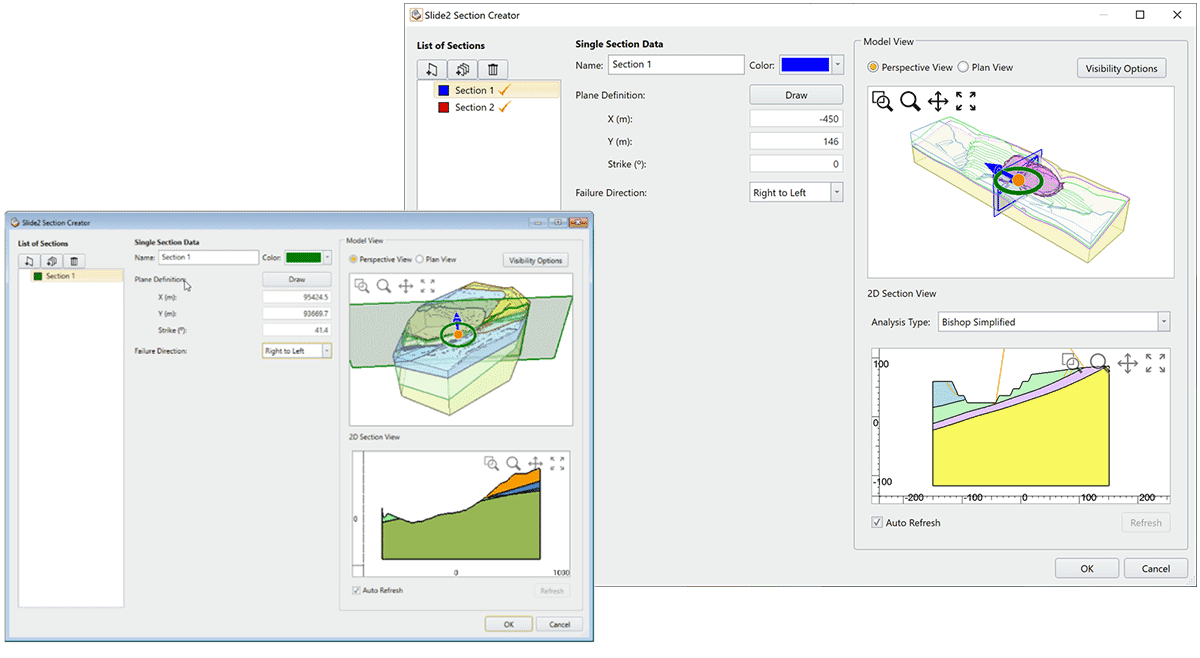

Import 2D to 3D (Slide2 or RS2)
Export 2D planar section (Slide2 or RS2)
Right-click editing shortcuts
Interactive sidebar
Slope wizard (create simple slope
models with a few mouse clicks)
Pore Pressure Definition :
Water surfaces (water table or piezo line)
Water pressure grids
Ru coefficients
Import pore pressure grids from RS3
Search Methods
Auto-refi ne search
Cuckoo search
Grid search
Particle Swarm
Surface Altering Optimization
Automatic 3D failure direction
determination
Slope limits (inclusion or exclusion zones)
Surface filter options
Seismic Options :
Pseudo-static analysis
Staged pseudo-static analysis
Strength Models :
Mohr-Coulomb
Undrained
Infinite Strength
Anisotropic Strength
Shear/Normal Function
C/Phi Function
Generalized Hoek-Brown
Vertical Stress Ratio
Barton-Bandis
Power Curve
Hyperbolic
Discrete Function
Drained-Undrained
Generalized Anisotropic
SHANSEP
Support :
Active vs. passive anchors
Easily define/edit patterns
End-anchored bolts
Geotextiles
Grouted tieback
Grouted tieback with friction
Piles and micropiles
Soil nails
User-defined
