Product Overview
SigmaDSTV
Seamless DSTV Conversion in SOLIDWORKS
SigmaDSTV is Integrated for Efficient Workflow
SigmaDSTV SW is a DSTV exporter plugin that runs inside of SOLIDWORKS and is designed to generate NC1 files for beam line and beam coping machines. The seamless integration between the SigmaDSTV plugin and SOLIDWORKS ensures an easy and efficient way to export structural designs into DSTV format.
Specifications
Fast Processing with SigmaDSTV
Directly import any major 2D and 3D file for painless part and assembly creation
Automatic profile recognition separates structural steel parts from other kinds of parts like nuts and bolts
Batch processing supports a fully automated workflow and ERP/MRP integration

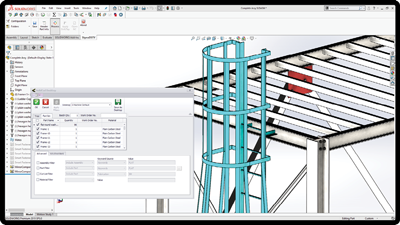

SigmaDSTV_Property_Mapping
Cost Effective File Handling
Includes all features and abilities needed to go from CAD model to machine file in seconds
Automatic recognition of sketches as the marking process
Able to detect all configurations of a SOLIDWORKS part and export each as an NC1

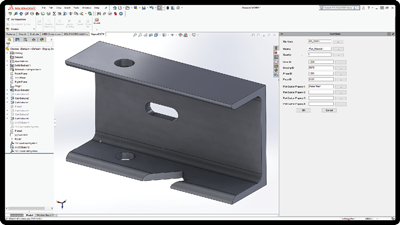

SigmaDSTVSW_Process
SOLIDWORKS > DSTV
STEP > DSTV
IGES > DSTV
SLDPRT > DSTV
Supports all SOLIDWORKS file types
