Product Overview
SigmaUNFOLD
Industry-Leading Unfolding Technology Working for You
Real-World, K-Factor Calculation

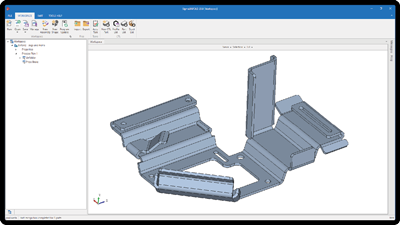

SigmaUNFOLD empowers you to recognize sheet metal bend features in a 3D body and flatten the part using accurate K-factor based calculations, which ensures a realistic, real-world representation of the part in the software. Assemblies and parts can be processed individually or simultaneously allowing for complete workflow management.
Specifications
Comprehensive Unfolding Features
Work with single parts, assemblies, or the entire workspace offering complete flexibility
Edit bends directly and adjust the bend radius with built-in CAD tools
Easily handles parts with 3D features like multi-depth pockets, bevels, louvers, and bends
Unfold closed shapes (like tubes) with automatic detection and slit cut placement

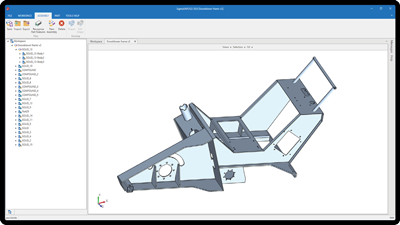

SigmaUNFOLD_assembly
SigmaUNFOLD Offers Adaptive Preferences
Rule-based K-factor, bend allowance, and bend deduction values let you choose how to unfold
Shared editable database of materials ready-to-use for all connected users
Integrated and Automated
Non-interactive and 3D interactive unfolding workflows available directly inside SigmaNEST
Supports major CAD formats preserving important model data
Leverage batch commands for fully autonomous unfolding and flat pattern export
