Product Overview
GstarCAD is well-known alternative CAD (computer-aided design) software of high compatibility with ACAD. With nearly 30 years of continuous improvement and lean innovation, today GstarCAD is far ahead in performance, stability and other key indicators and becomes leading CAD software in the world.
Innovative Tools
GstarCAD offers over 100 unique and innovation tools like “Collaboration”, “Area Table”, “Auto Layer”, “Viewport to Layout”, “Autoxlstable”. They are adopted to significantly speed up your drafting speed.
Specifications

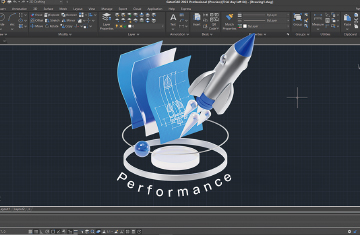

Performance Enhancement
Multi-Core is supported in GstarCAD 2023, which makes the performance significantly Optimized

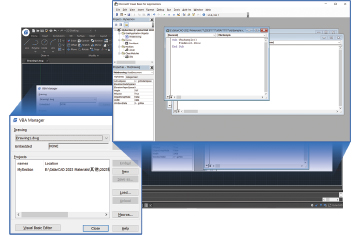

64bit VBA
The 64Bit Visual Basic for Applications (VBA) has been supported in the GstarCAD 64bit Version.
GRX Enhancement
GstarCAD 2023 GRX is perfectly compatible with AutoCAD ObjectARX 2020 APIs, programs can be successfully compiled, loaded and used without editing code. You just need to modify some options of the Configuration Properties and Rebuild Solution.
CUI Editor Enhancement
In GstarCAD 2023, "Ribbon Control Elements" and "Toolbar Control Elements" items are added to the categories drop-down list in the command list pane of the CUI editor, which you can select to filter and add elements quickly.
BAUTHORPALETTE
The BAUTHORPALETTE command is supported in GstarCAD 2023 to enhance the compatibility of the block editor. You can open the Block Authoring Palettes window in the Block Editor with this command.
BTABLE
The BTABLE command is supported in GstarCAD 2023 to enhance the compatibility of the block editor. You can enter the BTABLE command to store variations of a dynamic block in the Block Properties Table.
REVCLOUD
In GstarCAD 2023, the REVCLOUD command adds "Rectangular", "Polygonal" "Modify" and "Freehand" options, as well as three more system variables.
PALETTES
In GstarCAD 2023, you can click the Properties button or right-click on the Title bar of the palette or window to enable Anchor left/right, Auto-hide or adjust the transparency of the floating palettes or windows.
LOCKUP
The LOCKUP command is supported in GstarCAD 2023. It supports locking and unlocking selected objects in a drawing with a password to prevent others from modifying them.
Layout Expand Button
A new Layout Expand Button is added in GstarCAD 2023. When there are too many layouts in your drawing and some of them are not visible, the Layout Expand Button at the left side of the Layout Tabs can open a layout list that allows jumping to any existing layout quickly.
AI_EDITCUSTFILE
In GstarCAD 2023, you can enter the AI_EDITCUSTFILE command to open the Program Parameters (PGP) text file where you can add or edit your command aliases.
HELP
Online Help is supported in GstarCAD 2023, which will be regularly updated.

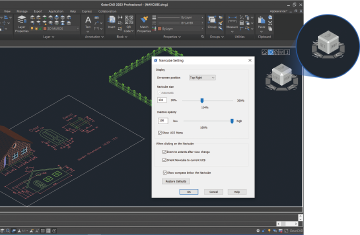

NAVICUBE
In GstarCAD 2023, NaviCube is supported to enhance the viewing experience. It's a navigation tool that is displayed when you are working in 2D model space or 3D visual style, which allows switching between standard and isometric views more easily.
SVG File
In GstarCAD 2023, SVG (Scalable Vector Graphics) files are available to be imported and exported.
